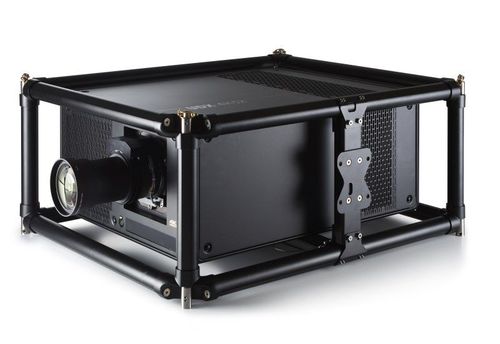

21,000 lumens, WUXGA, 3-chip DLP laser phosphor large venue projector
The UDX range delivers stunning experiences and savings on installation and shipping time, reducing costs significantly. The most compact, high-brightness laser projectors with integrated cooling on the market bring reliable and razor-sharp 4K images to every type of event and venue.
The UDX-W22’s WUXGA resolution and 21,000 lumens light output ensure flawless shows with accurate colors at all times. The Constant Light Output (CLO) also provides constant brightness and color over time. Users enjoy the widest color spectrum in the industry that matches the renowned Xenon quality and outperforms the Rec. 709 color space - without compromising on brightness.
Cut costs with laser projection - The laser phosphor light source reduces lamp-related costs, maintenance as well as image flicker. The result is a long lifetime and high reliability for minimal downtime, while compact and rugged design reduces shipping and labor costs. The modular components limit servicing time. You can also reuse your TLD+ lenses.
Pick your brightness and resolution - The unique FLEX2 feature tunes and locks your brightness and resolution to a specific show so you can cover a wider range of brightness levels and resolutions with fewer projectors.
Faster processing for sharper images - The Barco Pulse 4K electronics offer an intuitive interface and flexible, user-friendly, embedded control software. Its Single Step Processing (SSP) allows for sharper images and less latency.Key Features
- Stunning experiences thanks to high-brightness images
- Savings on installation and shipping time
- Laser phosphor light source for reduced costs
- 24/7 operation
|Resolution:||WUXGA (1920 x 1200)|
|Display Device:||0.96" DMD DLP x3|
|Brightness:||21,000 center lumens / 20,000 ANSI lumens / 22,500 ISO|
|Video Signals:||NTSC, PAL, SECAM; Computer signals up to 4K/4KUHD (4096 x 2160/ 3860 x 2400)|
|Number of Colors:||Full Color|
|Lamp:||Laser Phosphor Light Engine|
|Typical Lamp Life:||25,000 hrs|
|Throw Ratio:||Depends on Lens; Lens not included|
|Image Size:||Depends on Lens; Lens not included|
|Throw Distance:||Depends on Lens; Lens not included|
|Projection Methods:||Front/Rear; Tabletop/Ceiling Mount|
|Inputs:||HDMI x 1|
DisplayPort x 1
BNC x 1
RJ45 x 1
RS232 x 1
Optional DP1.2 Input
|Audible Noise:||49 dB(A)|
|Dimensions:||31.49" x 47.24" x 26.96"|
|Accessories:||Power cord, wireless/XLR wired rugged remote control|
|Remote Control:||Remote Control Included with Batteries|
|Mfg Warranty:||3 years|
|Product Data Sheet:||Product Data Sheet|
