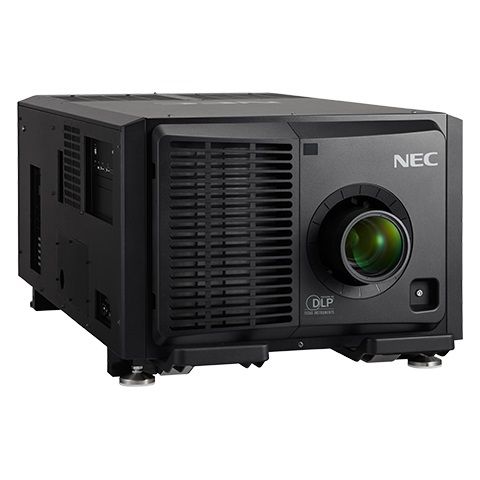

3D ReadyNEC PH-3501QL Laser Projector - NO LENS
NEC PH-3501QL Laser Projector - NO LENSNEC PH-3501QL Laser Projector - NO LENS

NEC PH-3501QL Laser Projector - NO LENS

Part Number: PH-3501QL
Call for Pricing
Availability: Usually ships the same business day


NEC PH-3501QL Laser Projector - NO LENS

Powerful 3-chip 1.38" DLP installation projector with the latest RB laser light source supports new, demanding projection

Laser Light Module
  • 20,000-plus hours of virtually maintenance-free operation
  • High-brightness, lower power consumption enhances applications such as retail, digital signage and theme parks
  • Ability to control brightness creating a stable image over longer time periods
Integrated and Powerful
  • Project uncompressed FHD video with integrated HDBaseT
  • High performance video processing/scaling creates life-like images
  • Integrated software applications such as DisplayNote®, Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
  • Enjoy greater installation flexibility with powered optional bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 7.3 to 823.8 ft
  • Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
  • +/- 0.5% vertical lens shift and +/- 0.17% horizontal lens shift capabilities make alignment easy


Detailed Specifications
Resolution:4K (4096x2160)
Display Device:1.38" DC4K DMD chip
Brightness:40,000 Center lumens, 35,000 ANSI
Contrast Ratio:30000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to 4K (4096 x 2160)
Aspect Ratio:16:9
Number of Colors:Full Color
Lamp:Laser Light Engine
Typical Lamp Life:20,000 Hours
Throw Ratio:Depends on Lens; Lens not included
Image Size:Depends on Lens; Lens not included
Throw Distance:Depends on Lens; Lens not included
Keystone Correction:Horizontal/Vertical ±40°
Projection Methods:Front/Rear, Tabletop/Ceiling Mount
Inputs:HDMI x 2
DisplayPort x 2
BNC x 4
USB Type A x 1
RJ45 x 2
RS232 x 1
3D Sync x 1
Option Slot x 1
Audible Noise:55dB
Weight:317.6 lbs.
Dimensions:27.4" x 46.5" x 17.9"
Accessories:Remote control, batteries, power cord, user’s manual on CD-ROM, quick start guide, Lens Hole Cap, warranty Sheet, Security Sticker, Service Door Key
Remote Control:Remote Control Included with Batteries
Mfg Warranty:Registered owners receive a five (5) years or 20,000 hours (whichever comes first) parts and labor warranty, including the first year of InstaCare.InstaCare provides the original owner one year of eitherlimited 3 business day repair/ return or next business dayexchange
Product Data Sheet: Product Data Sheet
