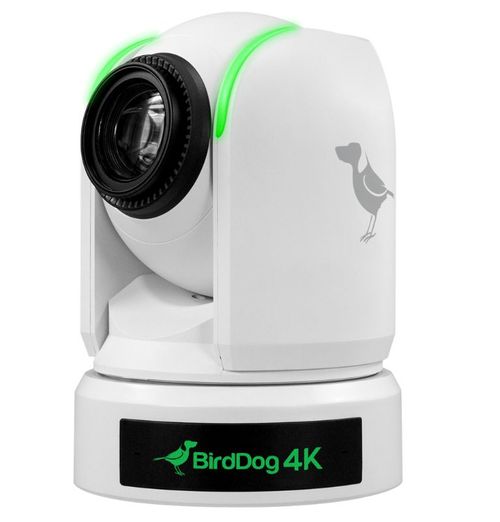

BirdDog 4K NDI PTZ Camera, White - P4KW

BirdDog 4K NDI PTZ Camera, White - P4KW

Part Number: P4KW
Our Price: $7,995.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Hello Sony 1" Sensor. Meet NDI.

P4K is the real deal. A huge 1" Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.

Hello Sony 1" Sensor. Meet NDI.

P4K is the real deal. A huge 1" Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.

More than just a production PTZ. Shoot true cinematic styles.

P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.

Advanced Colour Controls.

With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.

Superfine Robotics. Precise control at your fingers.

P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.

360 degree Tally lights.

The front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.

Full NDI. 6G SDI. HDMI 2.0. Life is all about connections.

Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.

Genlock. Let that sync in.

With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.

Adaptive bit rate. Slide your way to glory.

Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

PTZ Keyboard. Take control.

Combine P400 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P400 over NDI® or by RS422 / RS232 when using in SDI mode.

RESTful API. DIY automation.

Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

BirdDog Together.

BirdDog are pleased to offer free Central Pro and Comms Pro worth $1490 to all our Educational, House of Worship, and Not for Profit customers.

Free Software Tools.

  • Central Lite. - Team up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
  • Cam Control. - Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.
  • Comms Lite. - Comms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.

Specifications

CAMERA
Image Sensor:1.0-type back-illuminated Exmor R CMOS sensor
Number of effective pixels:14.2 Megapixels
Picture elements:3840 x 2160, 8.29 Megapixels
Lens:Optical, 12X
Digital Zoom:Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
Horizontal Angle of View Focal Length:64.6 ? (Wide) – 6.1 ? (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
Min. object distance:80mm (Wide), 1000mm (Tele)
Aperture:F2.8 Constant (W)~(T), 16 Steps
Min. Illumination:0.5 lx (1/30 sec, 50%, High Sensitivity mode On)
2.0 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On)
0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
Shutter Speed:1/10000s to 1/8 (59.94/29.97)
Focus:Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
White Balance:AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
Exposure:Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
Features:High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog
WDR:YES(130dB)
ND Filter:YES
Image Stabilizer:YES
Color Gain:Yes (15 step)
Color Hue:Yes (15 step)
Gamma:Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
Gamma Level:Yes (15 step)
Black Level:Yes (97 step)
Flicker Cancel:Yes
Noise Reduction:On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
S/N Ratio:?50db
MECHANICAL
Body Color:Black, White
Pan Movement:Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S )
Tilt Movement:Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S)
Preset Position:0~5 Level Adjustable
Preset Speed:0~5 Level Adjustable
Preset Memory:YES, ( Picture Profile Preset-Preset Memory for image parameters)
Quietness:45db
Home Position:Supported
Environmental:Indoor
INTERFACE
4K Video Output:Main 4K HDMI Type-A (x1)
6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2
HD Video Output:Main HD HDMI Type-A (x1)
3G-SDI x2
HDMI Color Space:YCbCr, 4:2:2 RGB, 4:4:4
NDI Video Encode:Full bandwidth NDI
NDI Version:NDI v4.0 (Firmware upgradeable)
IP Video Stream:UP to 4K/30 and 1080p60
Camera Control Interface:RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
Control Protocol:NDI, VISCA, VISCA Over IP
LAN:RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)
External Sync. Input:BNCX1, 75?, HD 3-level sync, SD Black Burst
Audio I/O:Audio input x1, Audio output x1, 3.5mm audio jack
Audio Output:Embedded with main HDMI, 24bit Stereo
Embedded with SDI, 24bit Stereo
Embedded with NDI
Tally Light:Front and Back
ENVIRONMENTAL
Mount:Ceiling mount, Wall mount, Tripod
Operating Temperature :-10 to +40 (°C), 32 to 104 (°F)
Operating Humidity:?80% Suitable for Use
Power Input:12VDC, PoE++ (IEEE 802.3bt)
Power Consumption:22W
Dimension:165x196x247mm
Weight:3.4kg
