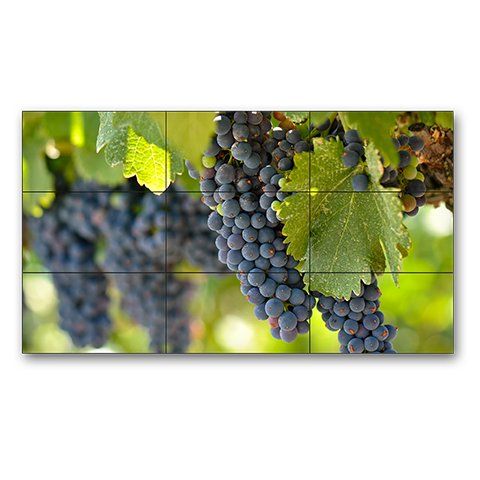

3x3 55" LED-Backlit Ultra-Narrow Bezel TileMatrix Video Wall Solution - X554UNS-TMX9P

3x3 55" LED-Backlit Ultra-Narrow Bezel TileMatrix Video Wall Solution - X554UNS-TMX9P

Part Number: X554UNS-TMX9P
Our Price: $83,499.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


55" LED-Backlit Ultra-Narrow Bezel TileMatrix Video Wall Solution - X554UNS-TMX9P

NEC's complete 55" 3x3 LCD TileMatrix Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix and TileComp technologies, combined with the ultra-narrow bezel design of the NEC X554UNS and the full adjustment capabilities of the Peerless DS-VW765-LAND mount, provide for a near seamless video wall without the need for additional third-party equipment.

  • Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
  • Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
  • Direct LED backlighting technology improves power consumption and uniformity
  • Display wall calibration kit, Overframe Bezel Kit, cabling and null modem cabling complete the solution
  • Overnight onsite exchange warranty ensures minimum downtime for maximum impact
  • Auto ID feature reduces install time in the single press of a button
  • Expanded daisy chain options with DP1.2 enables 4K resolution
  • Dual slot technology allows for the integration of single board computers and other option slot products with the need to stow additional external equipment
  • Near field communication capabilities for setup and service
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations


Panel TechnologySPVA (P-DID)
Viewable Image Size55"
Native Resolution1920 x 1080
Pixel Pitch0.63mm
Backlight TypeLED Direct-lit
Pixels Per Inch47@ native resolution
Brightness (typical)500cd/m2
Brightness (maximum)700cd/m2
Contrast Ratio (typical)145.8340278
Viewing Angle178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)8ms
Refresh Rate60Hz
Aspect Ratio0.6729166667
Active Screen Areatbd
Displayable ColorsMore than 16.7 million
