Bring collaboration to classrooms and meeting spaces with this interactive HD 1080p laser display1
Create engaging and collaborative learning environments with the BrightLink 1485Fi 1080p1 3LCD interactive laser display. Providing 5,000 lumens of color and white brightness2 and a virtually maintenance-free 20,000-hour laser light source with no lamps3, this reliable, ultra bright interactive display supports easy reading, instruction and communication. The flexible 1485Fi projects large, 100", 16:9 and super-wide, 120", 16:6 images, offering up to 95 percent more interactive space vs. a 75" flat panel. Designed for easy collaboration, the 1485Fi supports PC-free whiteboarding, printing, emailing and more. Plus, it easily hosts other network-connected BrightLink projectors5, allowing up to eight users to work on a single interactive canvas from multiple locations. Now with automatic image adjustment, simplified calibration and a single-cable, HDBaseT control pad, installation has never been easier.Key Features

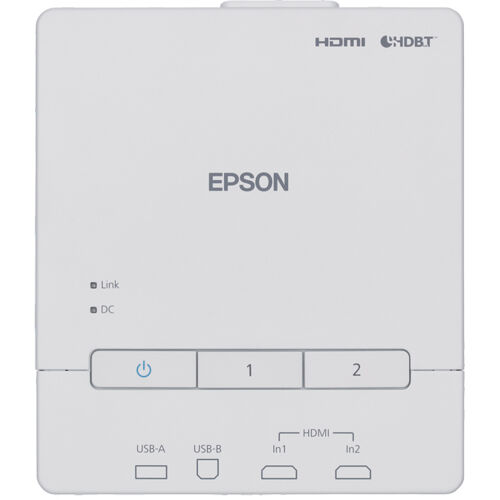

- Improved cable management - HDBaseT control pad supports, video, audio and interactive functions, reducing the number of cables and making installation a snap6
- Built-in wireless - use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices7
- Connect with Miracast® - supports software-free, peer-to-peer wireless connectivity
- SMART Learning Suite - includes 1-year subscription and support for SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
1 Pixel shifting technology achieves Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 BL1485Fi and 1480Fi projectors only. Cannot share to earlier models.
5 Requires Windows® 7, Windows 8 or Mac® OS X® or later to recognize finger gestures.
6 Supports maximum distance up to 225 feet (Cat6A/7; 1080p) and up to 130 feet (Cat6A/7; 4K content)
7 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.
|Display Device:||Epson® 3LCD, 3-chip technology|
|Video Signals:||NTSC, PAL, SECAM; Computer signals up to 1080p (1920x1080)|
|Number of Colors:||1.07 Billion|
|Lamp:||Laser Diode Light Engine|
|Typical Lamp Life:||20,000 hours (Normal)/30,000 hours (Extended)|
|Lens:||Manual focus, Digital 1.0 - 1.35x Zoom|
|Image Size:||65" - 100"|
|Keystone Correction:||Horizontal/Vertical ±3°|
|Projection Methods:||Front/Rear; Wall Mount/Tabletop|
|Inputs:||HDMI x 3|
VGA x 2
Composite Video (RCA Yellow) x 1
3.5mm Stereo Audio x 3
3.5mm Microphone Input x 1
USB Type A x 3
USB Type B x 2
RJ45 x 2
RS232 x 1
Interactive Synchronization Mini stereo In x 1
Interactive Synchronization Mini stereo Out x 1
|Outputs:||HDMI x 1|
VGA x 1
3.5mm Mini Jack Audio x 1
|Audible Noise:||Quiet Mode: 27 dB, Normal Mode: 36 dB|
|Dimensions:||18.1" x 14.3" x 8.3"|
|Accessories:||Lens cover, rear cable cover, interactive touch module and cable, Quick Setup Guide, 6' power cable, USB A/B cable (x1), projector remote control with two AA batteries, HDBaseT control pad with power supply, pen holder, four (4) markers for auto screen adjustment, IR reflectors, two (2) interactive pens, battery charger and two (2) AA rechargeable batteries (for interactive pens), Warranty statement, SMART SLS redemption code|
|Remote Control:||Remote Control Included with Batteries|
|Mfg Warranty:||Two-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support|
|Product Data Sheet:||Product Data Sheet|
