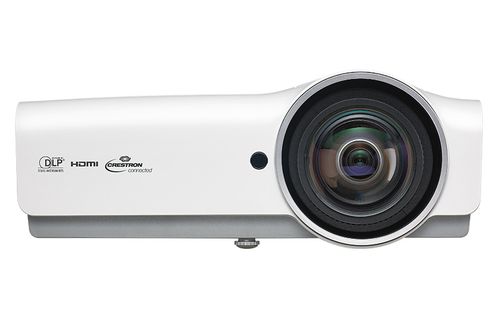

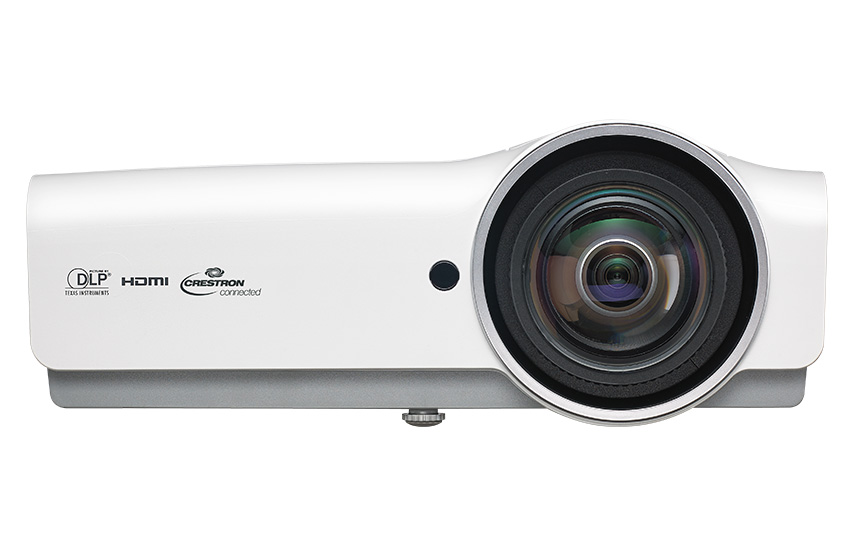

3D ReadyVivitek DW884ST DLP Projector
Vivitek DW884ST DLP Projector

Vivitek DW884ST DLP Projector

Part Number: DW884ST
Call for Pricing
Availability: Usually ships the same business day
Call 1-888-686-0551 for best price and to order!


Vivitek DW884ST DLP Projector

The Ultimate Short-Throw Solution

The DW884ST is a short throw projector that not only offers less screen shadowing, but high performance and reliability in diverse environments. Leading the market in connectivity, the DW884ST has 3 HDMI inputs and MHL support. Powerful speakers make the DW884ST a perfect fit for classrooms.

Excellent Connectivity

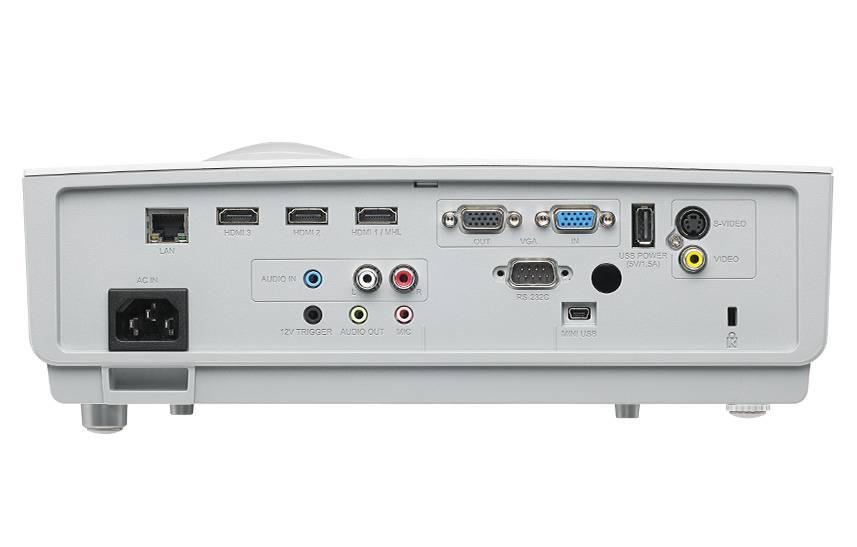

The Vivitek DW884ST is the projector you want for widescreen versatility: Mini USB service connection, USB Type A (Power only), DC-12V, LAN for internet, Composite video for everyday video devices, right and left RCA audio, VGA-Out, RS232C, VGA-In, Audio-Out, Audio-In, S-Video, and HDMI v1.4.

  • Native WXGA(1280x800) resolution; displays signals up to WUXGA (1920x1200)
  • 3600 lumens of brightness with a 15,000:1 contrast ratio
  • 6-segment color wheel for accurate and detailed images
  • Enhanced color and display adjustments
  • Sealed optical engine to keep dust out and improve performance
  • High-efficiency lamps last up to 7000 hours (in Dynamic Eco Mode)
  • Rated intensive use for color consistency over time*
  • *12 hours per day without yellowing or discoloration of image

  • 3D Ready via DLP Link, Full 3D from Blu-Ray or broadcasted cable or satellite
  • VGA-Out for display on a secondary monitor
  • Powerful 20 watts (10W x 2) of total audio power with multiple audio-in and audio-out ports
  • MHL device connectivity for streaming of content (video, audio, documents, presentations) from a compatible Android mobile device
  • Keypad lock prevents accidental system adjustments
  • Top-loading, sliding cover for quick and easy lamp replacement
  • RJ45/RS-232C for integration and system administration. Integrated network moniotring and management solutions (product certified) including Crestron RoomView, Extron, AMX SSDP, and Telnet
  • 12V trigger for simple screen/projector automation
  • Anti-theft security features include Kensington security slot and security bar


Detailed Specifications
Resolution:WXGA (1280 x 800)
Display Device: Single 0.65" DLP
Brightness:3600 Lumens
Contrast Ratio: 15000:1
Video Signals:NTSC, PAL, SECAM; Computer Signals up to WUXGA (1920x1200)
Aspect Ratio: 16:10
Number of Colors: 1.07 Billion
Lamp: 240W
Typical Lamp Life: 3500/5000/7000 Hours (Normal/Eco/Dynamic Eco Mode)
Lens: Fixed Lens, Manual Focus
F=2.8, f=7.51mm @ 87.2"
Throw Ratio: 0.521:1
Image Size: 40" - 300"
Throw Distance: 1.31' - 10.5'
Keystone Correction: Vertical 40
Projection Methods: Front/Rear, Ceiling Mount/Tabletop
Inputs: HDMI 1.4 x 2
VGA x 1
S-Video x 1
Composite Video x 1
3.5mm Mini Jack Audio x 1
RCA Audio (L/R) x 1
3.5mm Mini-Jack Microphone In x 1
RJ45 x 1
RS-232c x 1
12V Trigger x 1
Outputs: VGA x 1
3.5mm Audio x 1
Speaker: 10W x 2
Audible Noise: 32dB/36dB (Normal/Eco)
Weight: 7.15 lbs.
Dimensions: 12.36" x 9.5" x 4.96"
Accessories: AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User's Manual (CD), Lens Cap, Warranty Card
Remote Control: Remote Control Included with Batteries
Mfg Warranty: 5-Year limited parts and labor, 1-Year Lamp
Product Data Sheet: Product Data Sheet
