3D ReadyVivitek DW770UST DLP Projector
Vivitek DW770UST DLP Projector

Vivitek DW770UST DLP Projector

Part Number: DW770UST
Our Price: $1,195.00
Availability: Usually ships the same business day
Projector Calculator


Vivitek DW770UST DLP Projector

Ultra Short-Throw Projector

The DW770UST is the ultimate ultra-short-throw projector with enhance 4K capability producing ultimate image quality. The projector offers 3500 lumen and 100 inch diagonal image from a distance of 15.75 inch away from the display surface. For added user convenience, the DW770UST feature integrated networking monitoring and management solution, including TCP/IP TELNET and those from Crestron® RoomView™, as well as others

Key Features
  • DLP® and BrilliantColor™ technologies for sharp and detailed image quality
  • Brilliant 3,500 ANSI lumens of brightness with a crisp 10000:1 contrast ratio
  • Native WXGA (1280 x 800) resolution with enhance 4K capability up to UHD (3840 x 2160)
  • High-efficiency lamp that last up to 12,000 hours (Dynamic Eco Mode)
  • Multiple segment color wheel for the best possible image quality
  • Ultra-short throw projector with low profile design and embedded reflective mirror
  • Project a large 80” to 100” image from a distance extremely close to the projection surface prevents light glare in the presenter’s eyes and shadow-free image obstruction
  • Sealed optical engine and enhanced ventilation system design to minimizing the impact of dust and smoke
  • Full suite of display connections including HDMI 2.0, composite video, and VGA-in/out
  • VGA–output for display on a secondary monitor
  • Total 20W (10Wx2) audio power with multiple audio-in and audio-out ports for external device connection
  • Network ready and Crestron® RoomView™ approved for network monitoring and management
  • Top-loading, cover for quick and easy lamp replacement
  • Keypad lock prevents accidental system adjustments
  • Anti-theft security features include: Kensington® security slot and PIN lock keypad


Detailed Specifications
Resolution:WXGA (1280 x 800)
Display Device:Single 0.65” DMD DLP® Technology
Brightness:3,500 Lumens
Contrast Ratio:10000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WXGA (1280 x 800)
Aspect Ratio:16:10
Number of Colors:16 Million
Lamp:240W Metal Halide bulb
Typical Lamp Life:5,000 hours /12,000 hours (Eco)
Lens:Fixed focal length , manual focus
Throw Ratio:0.35:1
Image Size:79.65" - 100.27"
Throw Distance:2.0' - 2.5'
Keystone Correction:±40° Vertical
Projection Methods:Table Top or Ceiling Mount (Front or Rear)

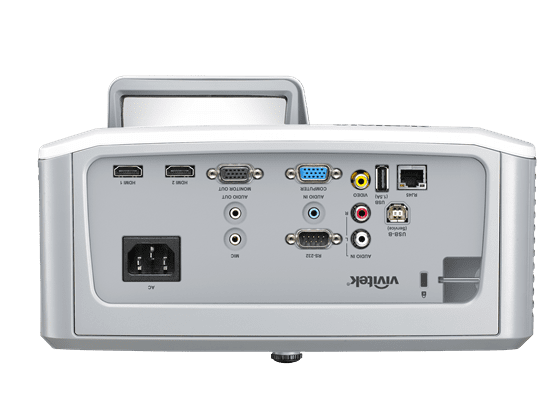

Inputs:HDMI x 2
VGA x 1
Audio RCA (L/R)
3.5mm Mini Jack
Microphone Mini Jack
USB A x 1
USB B x 1
Outputs:VGA x 1
3.5mm Mini Jack Audio x 1
Speaker:10W x 2
Audible Noise:33dB/29dB (Normal / Eco. Mode)
Weight:11 lbs.
Dimensions:11.3" x 4.9" x 14.7"
Accessories:AC Power Cord, VGA Cable, Remote Control (with batteries), User Manual (CD), Warranty Card, Wall Mount (%WM-3)
Remote Control:Remote Control Included with Batteries
Mfg Warranty:5-Year Limited Parts/Labor, 1-Year on Lamp
Product Data Sheet: Product Data Sheet
