Vivitek DU9800Z-BK Laser Projector - NO LENS

Description

Vivitek DU9800Z-BK Laser Projector - NO LENS

Shine Bright with an SSL Laser Projector delivering 18,000 Lumens, Rich Connectivity, Edge-Blending, and Maintenance-Free Operating Time

Excellent Connectivity - The Vivitek DU9800Z provides the connections necessary for many diverse projection environments: HDMI (2), Component (YPbPr), Displayport, VGA input/output, 3D Sync Out, 3G SDI(HD-SDI) -In/Out, RS232, Wired Remote, HDBaseT/LAN and 12V Trigger (2).

Key Features

Bright 18,000 ANSI lumens with a native WUXGA (1,920 x 1,200) resolution for impeciablle colors and outstanding details
DLP DarkChip3 and BrilliantColor technologies for optimal black levels and vibrant colorful images
Sold state laser phosphor light source for reliable projection and performance
Environmentally friendly lamp-less design that is mercury-free and energy efficient
Almost maintenance-free with up to 20,000 hours of operating time
Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
Laser light source produces rich colors for an incredible cincematic like movie experience
Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
Built-in hardware edge blending and warping functionality
Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT
HDBaseT interface with support for distribution of digitalvideo content over standard CAT5e/6 LAN cable
Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
360° operation and projection design for set up in all angles
Instantaneous power-on & off, so no need for system pre-heating and postcooling
Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
Frame sequential and dual channel 3D supported
Complete range of motorized interchangeable lens in sizes from 0:84 to 7:01 (Optional)
Optimized system layout with high efficiency cooling system
Heavy duty steel chassis for extra strength and integrity
24/7 continuous operation with no downtime
Network ready for integration and system administration via RJ45

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.96" Single Chip DLP
Brightness:	18000 Lumens
Contrast Ratio:	10000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200)
Aspect Ratio:	16:10
Number of Colors:	Full Color
Lamp:	Laser Light Engine
Typical Lamp Life:	Up to 20,000 Hours
Lens:	NO LENS
Throw Ratio:	Depends on Lens; Lens not included
Image Size:	Depends on Lens; Lens not included
Throw Distance:	Depends on Lens; Lens not included
Keystone Correction:	Vertical ±40°; Horizontal ±60°
Projection Methods:	Table Top, Ceiling Mount, Portrait (Front or Rear)

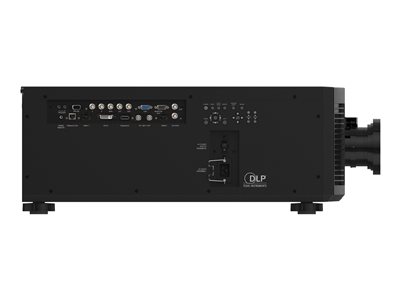

Inputs:	HDMI x 2 DVI x 1 VGA x 1 5BNC x 1 RJ45 x 1 RS232 x 1 3D Sync x 2 12-Volt Trigger x 1 Wired Remote In x 1 3G SDI In x 1 3G SDI Out x 1
Outputs:	VGA x 1
Speaker:	None
Audible Noise:	43dB
Weight:	105.8 lbs.
Dimensions:	26.8" x 20.9" x 9.8"
Accessories:	AC Power Cord, Remote Control w/Batteries, Lens Cap, Documentation Kit
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	Large Venue Laser Phosphor Warranty: 5 Year projector / 3 years or 10000 hours on the Laser Phosphor illumination source.(Whichever comes first)
Product Data Sheet:	Product Data Sheet
