3D ReadyVivitek DU8090Z Laser Projector - NO LENS
Vivitek DU8090Z Laser Projector - NO LENSVivitek DU8090Z Laser Projector - NO LENS

Vivitek DU8090Z Laser Projector - NO LENS

Part Number: DU8090Z
Call for Pricing
Availability: Usually ships the same business day
Call 1-888-686-0551 for best price and to order!


Vivitek DU8090Z DLP Projector - NO LENS

Impressive Brightness and Abundant Features for an Exceptional Large Screen Experience

The DU8090Z laser projetor takes projection to the next level, with impressively vivid colors and a high brightness of 8,000 lumens. Built lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. Complete lens set together with a full feature set, the DU8090Z offers the best performance and value in the next generation of advanced technology projection - laser. The DU8090Z offers the most immersive big-screen experience available in digital projection.

Excellent Connectivity

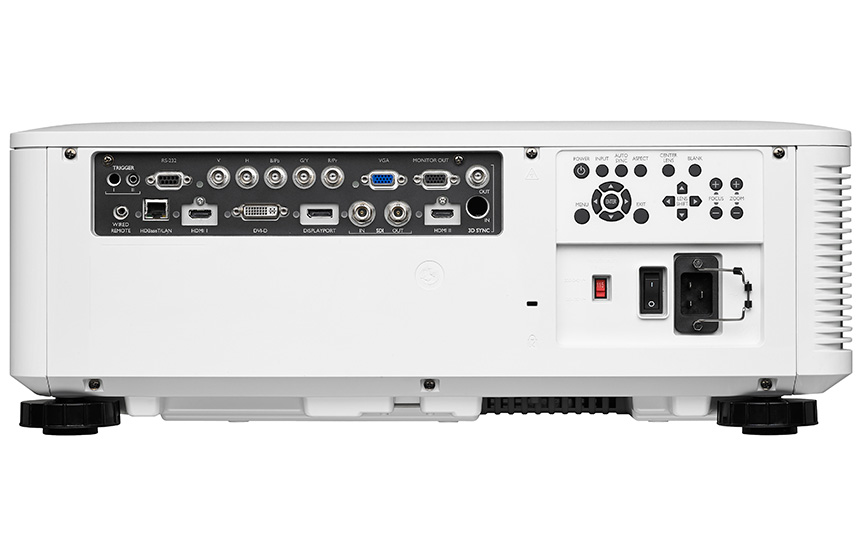

The Vivitek DU8090Z provides the connections necessary for a large venue and many other environments: HDMI input, BNC for YPbPr/RGBHV, VGA input for PC and laptop, S-Video, Composite video, IR input, Rs232c, and 12V trigger for screen automation.

Key Features
  • Laser phosphor projection engine incorporates a laser design that’s long lasting (20,000 hrs) and environmentally friendly
  • 8,000 ANSI lumens, with a dynamic 10,000:1 contrast ratio, provide amazing image quality that’s stable over time
  • Built-in ACS (auto color sensor) for color and brightness consistency
  • Built-in MPS (multi projector system) hardware for edge blending, flexible geometry and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and projector position flexibility together with memory system
  • Picture-in-Picture (PIP) to simultaneously project images/videos from two different sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™ (content over CAT5e/6 cable)
  • Full 3D compatibility with DLP® Link™ and HDMI 1.4 interface
  • Flexible mounting positioning - 360 degrees in any axis for ease of installation
  • Network connectivity for remote projector management - control and status. Ready for integration and system administration via RJ45
  • Eight interchangeable lens options for flexible installation and optimized brightness
  • Sealed optical engine and filter-less design improves performance with minimal service maintenance
  • Choose the color to best fit your environment, with black and white cabinet colors available
  • Warranted for 24/7 intensive-use operation


Detailed Specifications
Resolution:WXGA (1280 x 800)
Display Device: 0.67" Single Chip DLP
Brightness:8000 Lumens
Contrast Ratio: 10000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200)
Aspect Ratio: 16:10
Number of Colors: Full Color
Lamp: Laser Light Engine
Typical Lamp Life: Up to 20,000 Hours
Throw Ratio: Depends on Lens; Lens not included
Image Size: Depends on Lens; Lens not included
Throw Distance: Depends on Lens; Lens not included
Keystone Correction: Vertical ±40°; Horizontal ±60°
Projection Methods: Front/Rear, Ceiling Mount/Table Top
Inputs: HDMI v1.4a (x2)
DVI-D x 1
Component (5 BNC) x 1
VGA-In x 1
3G-SDI-In x 1
RS-232 x 1
3D-Sync In x 1
12v Trigger x 1
Wired Remote x 1
HDBaseT™/LAN (Shared) x 1
Outputs: 3G-SDI-Out x 1
VGA-Out x 1
3D-Sync Out x 1
Speaker: None
Audible Noise: 40dB
Weight: 61.7 lbs.
Dimensions: 19.7" x 22.8" x 8.1"
Accessories: Replacement Lamp, AC Power Cord, Remote, Lens Cap, Anti-Theft Lens Screw, Documentation Kit
Remote Control: Remote Control Included with Batteries
Mfg Warranty: 5-Year Warranty on Parts and Labor / 1-Year Warranty on Lamp.
Product Data Sheet: Product Data Sheet
