3D ReadyVivitek DU4771Z-WH Laser Projector
Vivitek DU4771Z-WH Laser ProjectorVivitek DU4771Z-WH Laser Projector

Vivitek DU4771Z-WH Laser Projector

Part Number: DU4771Z-WH
Our Price: $4,595.00
Availability: Usually ships the same business day
Projector Calculator


Vivitek DU4771Z-WH Laser Projector

High performance WUXGA laser projector with HDBaseT™, MHL Compatibility and 3D Video Ready

Excellent Connectivity

The Vivitek DU4771Z-WH gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI, HDMI 2, HDMI 3, VGA, RJ45 (HDBaseT compatible), RS-232C, 3D Sync, Wired Remote, USB (Service), Audio In, Audio Out

Key Features
  • 6,000 lumens of brightness with a 20,000:1 contrast ratio
  • Native WUXGA (1920 x 1200) DLP® DarkChip3™ and BrilliantColor™ technologies for sharp, detailed and vibrant colorful image.
  • Solid state laser phosphor light source for reliable projection and performance.
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Horizontal and vertical lens shift for greater installation convenience and flexibility
  • Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • HDBaseT™ interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • Full suite of display connectivity inputs and outputs
  • 10W of total stereo audio power (5W x 2) with multiple audio-in and audio-out ports
  • 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
  • 360° operation and projection design for set up in all angles
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Network ready for integration and system administration via RJ45
  • Crestron® RoomView™ integration for network monitoring and management
  • Anti-theft security features include: Kensington® security slot, security bar


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:Single 0.67” DLP® Technology
Brightness:6,000 Lumens
Contrast Ratio:20000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WUXGA (1920 x 1200)
Aspect Ratio:16:10
Number of Colors:1.07 Billion
Lamp:Laser Phosphor
Typical Lamp Life:20,000 hours
Lens:F# 2.45 – 3.13, f=17.23 – 27.9mm
Throw Ratio:1.15 to 1.9:1
Image Size:61.82" - 257.18"
Throw Distance:8.3' - 20.9'
Keystone Correction:± 30° Vertical, Horizontal ± 30°
Projection Methods:Front/Rear; Tabletop/Ceiling Mount

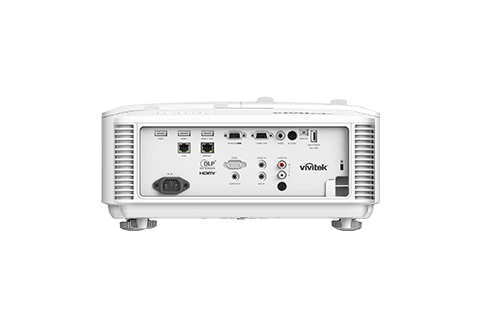

Inputs:HDMI x 3
VGA x 1
3.5mm Microphone Input x 1
RCA Audio (L/R) x 1
USB Type A x 1
USB Type B x 1
RJ45 x 2
RS232 x 1
3D Sync x 1
3.5mm Mini Jack Audio x 1
Outputs:VGA x 1
3.5mm Mini Jack Audio x 1
Speaker:5W x 2
Audible Noise:38dB / 36dB (Normal / Eco)
Weight:23.6 lbs.
Dimensions:13.8" x 17.7" x 5.9"
Accessories:AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
Remote Control:Remote Control Included with Batteries
Mfg Warranty:3-Year Limited Parts/Labor
Product Data Sheet: Product Data Sheet
