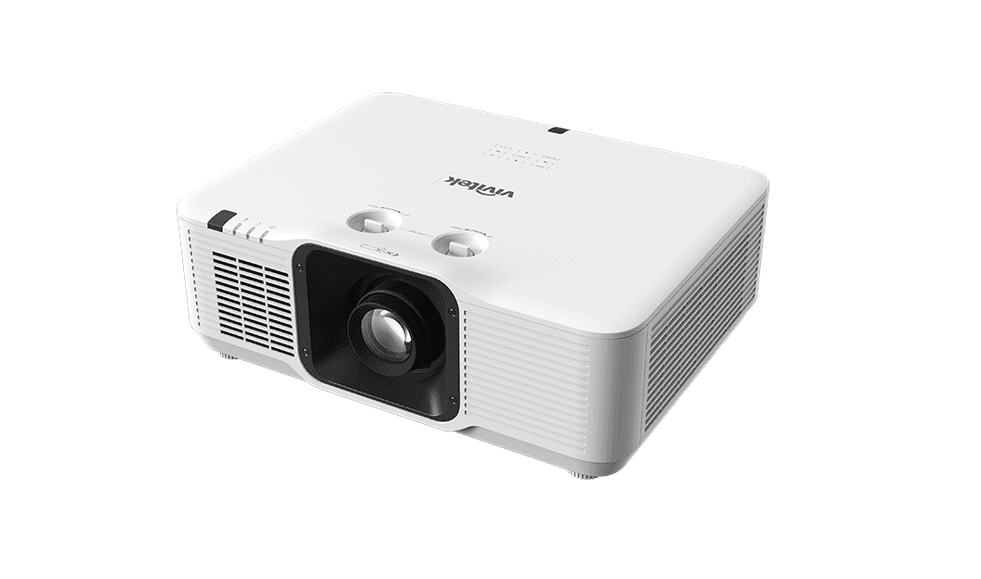

Vivitek DK5153Z-WH Projector

Reliable and easy-to-install conference projectors

The all-new DK5153Z is designed for easy installation and outstanding brightness up to 6,200 lumens to deliver excellent projector image during the meeting. It features two optics lens options(Std. and short Lens), 3D-Ready, installation flexibility and portable with a 1.65x zoom lens, keystone and corner correction all in a compact chassis to make installation more flexible. Supports 21:9 aspect ratio to have a wider and stunning meeting experience for video conferences.

• Brightness and Color Performance: The DK5153Z features up to 6,200 lumens of high brightness, 3,000,000: 1 contrast ratio and offers the next generation of advanced vivid color technology to deliver a perfect image display.
• Flexible Installation options: The DK5153Z is equipped with a 1.65X big zoom optical lens and supports a throw ratio of 0.5 to 1.9:1. It can provide flexible projection distance installation in any challenging environments. With the horizontal/vertical lens shift, even if the projector cannot be placed in the middle position, it can be flexibly adjusted to provide a perfect ratio image.
• Support HDBaseT™ Connectivity: The DK5153Z provides optional single board for HDBaseT™ interface with long-distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.
• Bigger and stunning meeting experience: The DK5153Z supports 21:9 aspect ratio to help you have a wide screen display and stunning meeting for video conferences.
• Edge Blending and Warping (DK5153Z only) : The DK5153Z is specially built-in edge blending and warping capability which can manage multiple projectors at the same time to create a seamless single image for various simulation .
• PJ-Control: Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.
• Keystone and 4-Corner Correction: Supports 360° no limitation on projection angle, vertical / horizontal keystone, and 4-corner geometric adjustment, allowing for almost unlimited mounting flexibility.
• High Standard Anti-Dust Protection: The optical system, from the laser light source to lens is completely sealed and rated IP6X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

• User's Manual
• Data Sheet
