Vivitek DH772UST DLP Projector

Part Number: DH772UST
Our Price: $1,495.00
Availability: Usually ships the same business day
Projector Calculator


Vivitek DH772UST DLP Projector

Ultra Short-Throw HD Projector with 4K Enhancement

The DH772UST is ultra-short-throw projector with 4K compatible. The projector offers 3500 lumen and 110 inch diagonal image from a distance of 20 inch away from the display surface. The DH772UST feature integrated networking monitoring and management solution, including TCP/IP TELNET and those from Crestron® RoomView™, as well as others

Key Features
  • DLP® and BrilliantColor™ technologies for sharp and detailed image quality
  • Brilliant 3,500 ANSI lumens of brightness with a crisp 10000:1 contrast ratio
  • Native 1080p (1920 x 800) resolution with enhance 4K capability up to UHD (3840 x 2160)
  • High-efficiency lamp that last up to 12,000 hours (Dynamic Eco Mode)
  • Multiple segment color wheel for the best possible image quality
  • Ultra-short throw projector with low profile design and embedded reflective mirror
  • Project a large 80” to 100” image from a distance extremely close to the projection surface prevents light glare in the presenter’s eyes and shadow-free image obstruction
  • Sealed optical engine and enhanced ventilation system design to minimizing the impact of dust and smoke

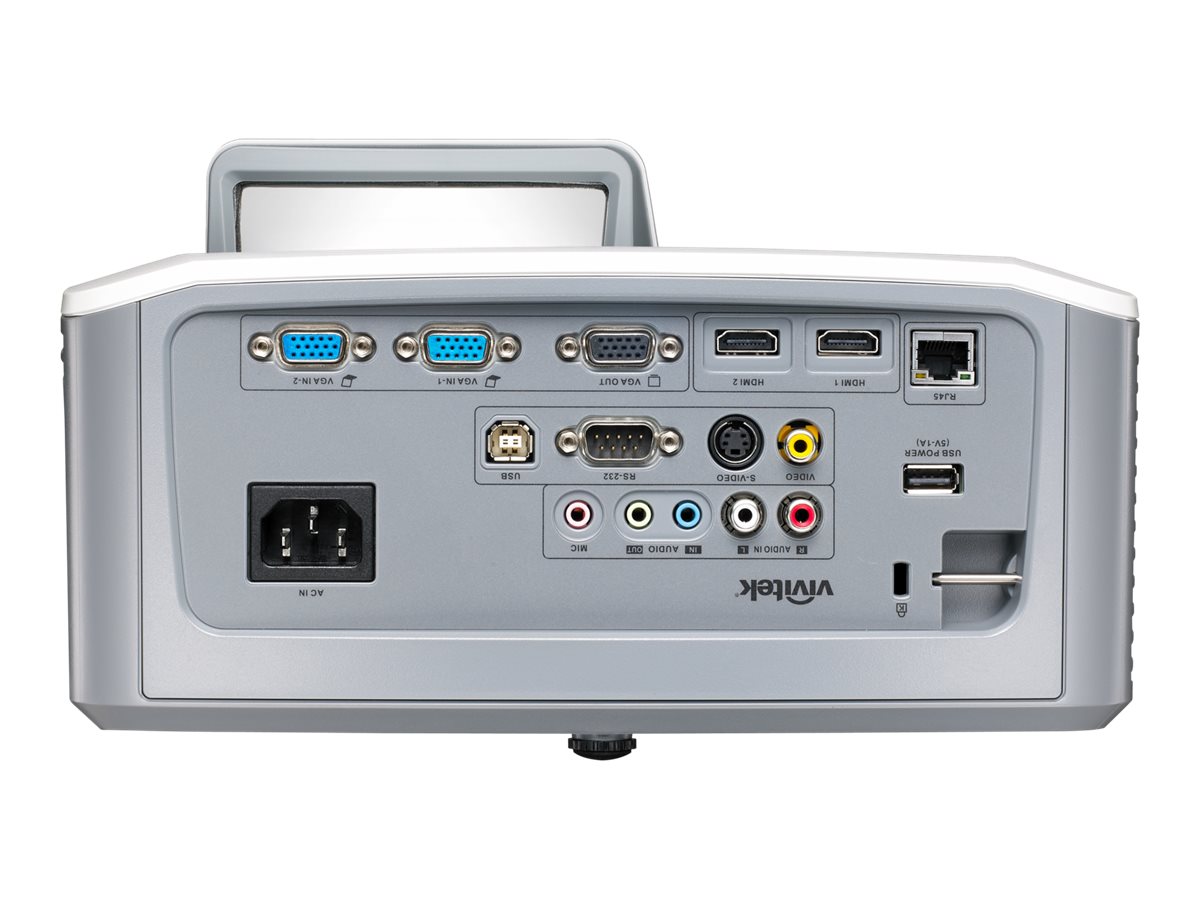

  • Full suite of display connections including HDMI 2.0, composite video, and VGA-in/out
  • VGA–output for display on a secondary monitor
  • Total 20W (10Wx2) audio power with multiple audio-in and audio-out ports for external device connection
  • Network ready and Crestron® RoomView™ approved for network monitoring and management
  • Top-loading, cover for quick and easy lamp replacement
  • Keypad lock prevents accidental system adjustments
  • Anti-theft security features include: Kensington® security slot and PIN lock keypad


Detailed Specifications
Resolution:1080p (1920x1080)
Display Device:Single 0.65" DLP
Brightness:3,500 Lumens
Contrast Ratio:10000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WUXGA (1920 x 1080
Aspect Ratio:16:9
Number of Colors:16 Million
Typical Lamp Life:5,000 hours /12,000 hours Eco
Throw Ratio:0.33:1
Image Size:88.03" - 110.56"
Throw Distance:2.1' - 2.7'
Keystone Correction:±40° Vertical
Projection Methods:Front/Rear; Tabletop/Ceiling Mount
Inputs:HDMI x 2
VGA x 1
USB x2
Outputs:VGA Dsub-15pin
3.5mm Mini Jack Audio x 1
Speaker:10W x 2
Audible Noise:33 dB / 29 dB (Eco)
Weight:11 lbs.
Dimensions:11.3" x 4.9" x 14.7"
Accessories:AC Power Cord, VGA Cable, Remote Control (with batteries), User Manual (CD), Warranty Card, Wall Mount (%WM-3)
Remote Control:Remote Control Included with Batteries
Mfg Warranty:5-Year Limited Parts/Labor, 1-Year on Lamp
Product Data Sheet: Product Data Sheet
