Compact and Flexible 1-Chip DLP™ Projectors Deliver Elite Color Performance in Any Exhibition SpacePower to Impress with Accurate Colors
Deepen immersion in any environment with high brightness, rich color, and accurate white balance thanks to Quartet Color Harmonizer and 1-Chip DLP™ imaging technology.Easy to Install and Integrate
With versatile apps and functions, diverse optional lenses, support for 4K input signals*1, and separate DIGITAL LINK and LAN terminals, these projectors reduce installation hassles with convenient flexibility.Reliable Even in Harsh Conditions
Engineered for 20,000 hours*2 of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.Key Features
- System Daylight View 3 and Detail Clarity Processor 3
- Dynamic Contrast Sync and Shutter Sync functions
- Multi-Unit Brightness and Color Control
- Supports Crestron®, AMX, and Extron® control
- Quick Start and Quick Off
- Geometry Manager Pro Software with optional expansion kits
- Multi Monitoring & Control Software with optional Early Warning Functions*5
*1 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection.
*2 CAT 5e cable or higher required. Transmission of up to 150 m (492 ft) for 1080/60p signals requires an optional ET-YFB200G DIGITAL LINK Switcher and the projector set to Long Reach Mode. 4K/60p signal transmission is supported for up to 50 m (164 ft).
*3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast , temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m 3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.
*4 The combination of primary/secondary input terminals is fixed. Input switching occurs automatically when the signal to the primary input is disrupted or restored. Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.
*5 A free 90-day trial of Early Warning Functions is available upon installation of free Multi Monitoring & Control Software Ver. 2.0 or later. Purchase a license and activate at PASS when trial period expires to continue using Early Warning Functions.
|Resolution:||WUXGA (1920 x 1200)|
|Display Device:||0.67" 1-Chip DLP|
|Brightness:||8,500 Lumens (Bright); 6,800 Lumens (Eco)|
|Number of Colors:||Full Color|
|Lamp:||Laser Light Engine|
|Typical Lamp Life:||20,000 hours (Normal), 24,000 hours (Eco)|
|Throw Ratio:||Depends on Lens; Lens not included|
|Image Size:||Depends on Lens; Lens not included|
|Throw Distance:||Depends on Lens; Lens not included|
|Keystone Correction:||Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)|
|Projection Methods:||Front/Rear; Ceiling Mount/Tabletop|

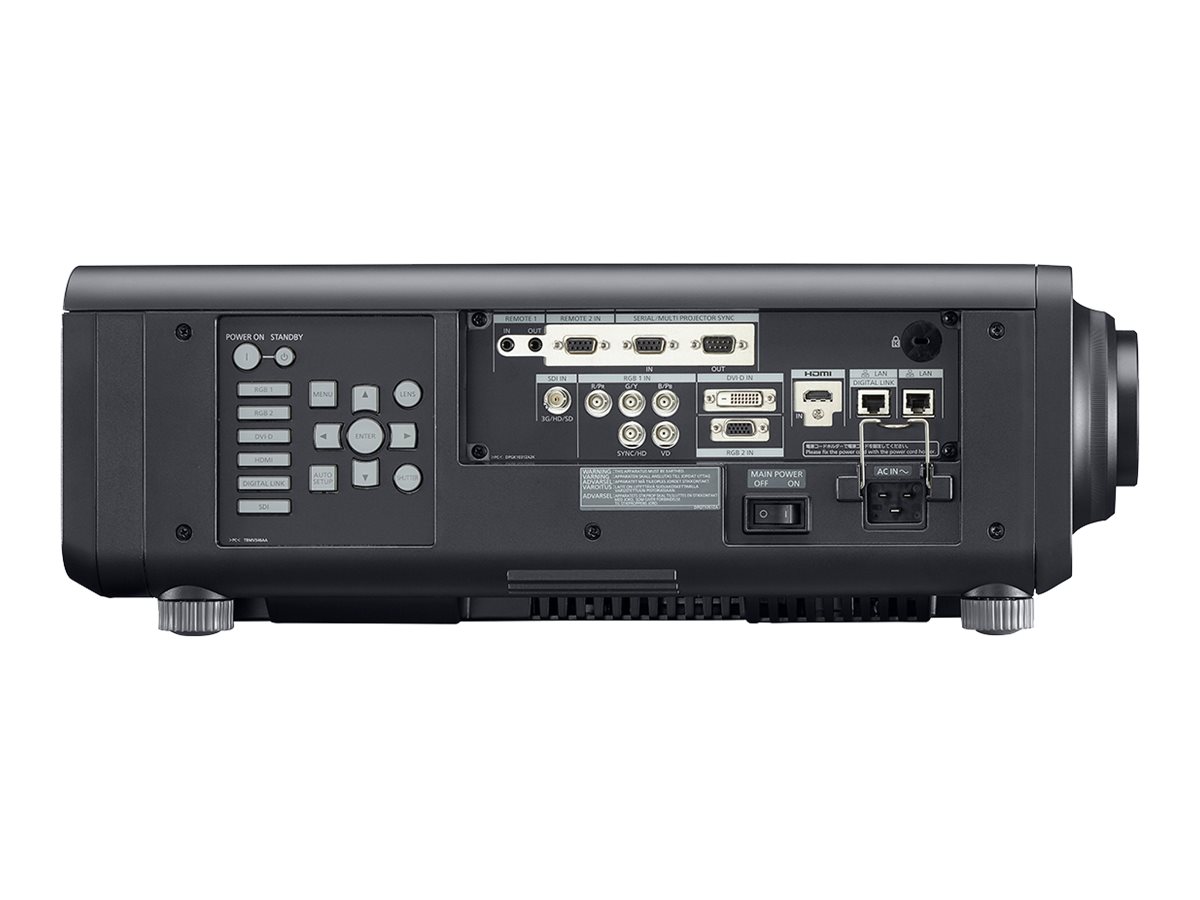

|Inputs:||HDMI x 1|
DVI x 1
VGA x 1
5BNC x 1
BNC x 1
RJ45 x 2
Wired Remote In x 2
Multi-Projector Sync In x 1;Multi-Projector Sync Out x 1
|Outputs:||Wired Remote Out x 1|
|Audible Noise:||40 dB (Normal) / 36 dB (Quiet 1) / 35 dB (Quiet 2)|
|Dimensions:||19.6" x 7.87" x 22.9"|
|Remote Control:||Remote Control Included with Batteries|
|Mfg Warranty:||3 year parts and labor|
|Product Data Sheet:||Product Data Sheet|
