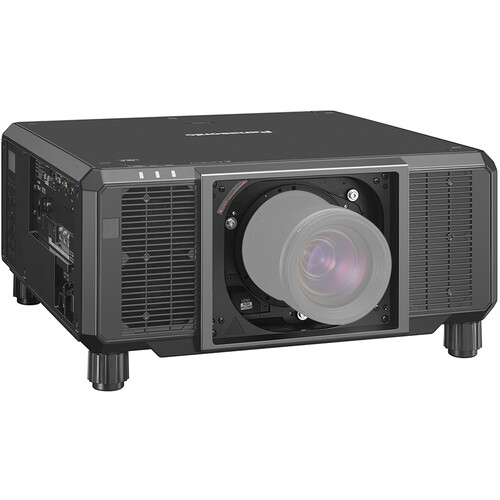

Panasonic PT-RZ24KU DLP Projector - NO LENS
Description
Panasonic PT-RZ24KU 3-Chip DLP™ WUXGA Large Venue Laser Projector
The Panasonic PT-RZ24KU is a 3-Chip DLP™ WUXGA Large Venue Laser Projector that delivers an HD image at 1920 x 1200 resolution via a laser light that produces an astonishing 21,000 lumens. It offers vivid 3-chip DLP color and can be enhanced with Dynamic Contrast, Gradation Smoother, and more. The filterless PT-RZ24KU offers a contrast ratio of 20,000:1 (Full On/Full Off, Dynamic Contrast 3). It has a center-to-corner zone ratio of 90% and has optional lenses (no lens included with this model).
Dynamic Contrast delivers higher white brightness and deep blacks during high-contrast scenes. Gradation Smoother reduces color banding, while Panasonic’s exclusive black-level adjustment evolves again to support completely seamless edge-blending.
Hermetically sealed optical block and high-efficiency liquid-cooling system enable maintenance-free projection for 20,000 hours13. Multi-Laser Drive Engine and Backup Input14 enhance reliability for failure-proof projection. Newly refined power supply supports projection at up to 15,000 lm15 on AC 100–120 V power.
- Hermetically sealed optical block
- Quad Pixel Drive
- 21,000 Center lumens
- Waveform Monitor function
Specifications
| Detailed Specifications | |
| Resolution: | (1920x1200) |
| Display Device: | 0.80" DLP x 3 |
| Brightness: | 21,000 ANSI Lumens (Center) |
| Contrast Ratio: | 25000:1 |
| Video Signals: | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input. 4K signals are converted to WUXGA (1920 x 1200 pixels) |
| Aspect Ratio: | 16:9 |
| Number of Colors: | Full Color |
| Lamp: | Laser diode |
| Typical Lamp Life: | 20,000 hours / 24,000 hours (Eco) |
| Lens: | NO LENS |
| Throw Ratio: | Depends on Lens; Lens not included |
| Image Size: | Depends on Lens; Lens not included |
| Throw Distance: | Depends on Lens; Lens not included |
| Keystone Correction: | Vertical: ±45°, Horizontal: ±40° |
| Projection Methods: | Ceiling/floor, front/rear |

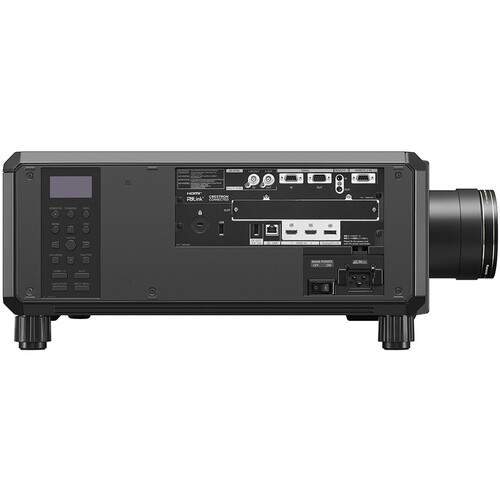

| Inputs: | HDMI x 2 DisplayPort x 1 USB Type A x 1 RJ45 x 1 RS232 x 1 3D Sync x 1 |
| Outputs: | BNC x 1 Wired Remote Out x 1 |
| Speaker: | None |
| Audible Noise: | 46 dB / 43 dB (Eco) |
| Weight: | 77 lbs. |
| Dimensions: | 8.70" x 21.70" x 22.40" |
| Accessories: | N/A |
| Remote Control: | Remote Control Included |
| Mfg Warranty: | 3 Years |
| Product Data Sheet: |  Product Data Sheet |
