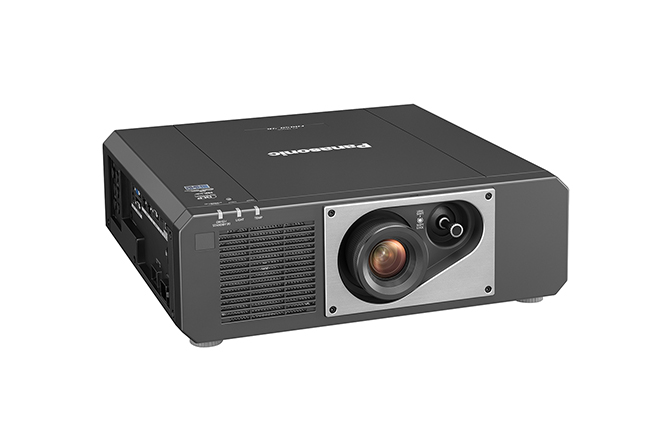

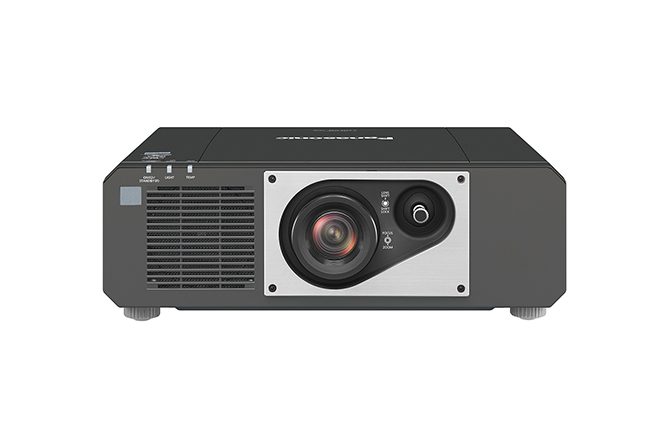

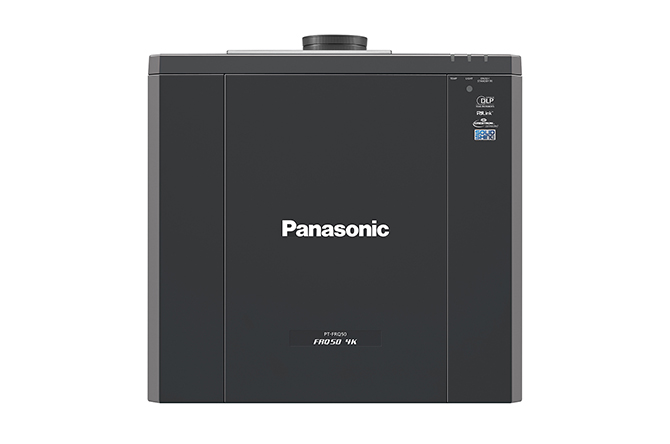

Panasonic PT-FRQ60BU8 Projector

Detailed 4K Images at up to 6.000 lm:Delivering Insightful Experiences from a Compact 1-Chip DLP Platform

Key Features
• Smooth and Detailed 4K Image Quality: Quad Pixel Drive creates sharp, detailed 4K images with Rich Color Enhancer achieving vivid, accurate color. High-speed processing supports 240 Hz/1080p frame rates with latency of 8 ms or less for smooth, grid-less images.
• Quad Pixel Drive for Detail-rich 4K Images with High Frame Rates: Quad Pixel Drive, Panasonic’s original 2-axis pixel-quadrupling technology, rapidly shifts each pixel vertically and horizontally to produce sharp, clear, and detail-rich 4K images for a maximum resolution of 3840 x 2160 pixels (16:9). Combined with the DMD’s high pixel-density and narrow aperture ratio, Quad Pixel Drive creates smooth, filmlike images with a superior sense of depth and definition, allowing viewers to retain complex information.
• Rich Color Enhancer Produces Vivid, Accurate Colors: Rich Color Enhancer is an original Panasonic color optimization technology for 1-Chip DLP™ projectors that offers two selectable modes. Dynamic Mode balances brightness and color for clear image visibility in well-lit environments. Standard/Graphic Mode optimizes color reproduction performance by adjusting color-wheel timing to expand red-channel output, leading to more naturally vibrant red expression. Colors are deep, rich, and accurate, faithfully reflecting the content creator’s artistic intent.
• Smooth Playback of 240 Hz Content
• Dynamic Contrast Elevates Image Realism: Dynamic Contrast directly modulates light output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise light output adjustment for accurate contrast even when bright and dark scenes frequently interchange.



• Flexible, Simple to Use, and Easy to Integrate: V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI® inputs and DIGITAL LINK integrate into 4K infrastructure. Free Grid simplifies operation of Geometric Adjustment functions using only the projector remote control.



• Flexible 2.0x Zoom Lens with Wide-Range V/H Lens-Shift Versatile 2.0x optical zoom lens clears a path to stress-free installation by expanding throw-distance flexibility, giving you more freedom to choose a mounting position for the projector. Wide-range V/H Lens-Shift (Vertical: +71 %, -48 % and Horizontal: +34 %, -27 %) locates the image as desired when the ideal projector placement isn’t possible, such as in rooms with high ceilings or for projection at an angle. Adjustments are easily performed via joystick on the front panel.
• Geometric Adjustment with Free Grid for Screen Adjustment via Remote Control Free Grid simplifies operation of select Geometric Adjustment functions built into the projector. Using only the projector remote control, with no need of a connected PC, installers can correct image distortion caused by uneven surfaces or irregular objects on flat or curved screens. A grid is overlaid on the projected image, allowing the installer to reshape distorted areas by adjusting the position of node or V/H line control-points. Grids of 2 x 2, 4 x 4, 8 x 8, or 16 x 16 lines are selectable according to required granularity, and work progress is saved automatically. Grid and control-point colors are selectable to ensure clear visibility over the image.



• Remote Preview Lite Remote Preview Lite allows the projectionist to check signal connectivity and to evaluate changes to the image when selected projector image adjustment settings are changed by previewing input video on a laptop screen. Remote Preview Lite works even when the projector is in Standby Mode and eliminates need for on-screen projection immediately before the presentation commences. It reduces chance of display issues before the performance, and if an error is detected, helps narrow down the possible cause to the input signal chain.

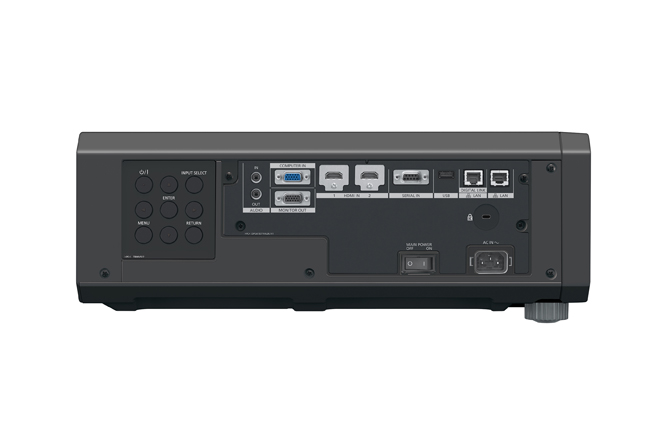

• Features 2x HDMI® CEC-Compatible Inputs for Easy Operation Two 4K-ready HDMI inputs support CEC commands from compatible devices, allowing the projector to turn ON/OFF with the source device. Add optional Wireless Presentation System PressIT and share content from almost any device with a single press of a button. As with other compatible streaming devices, PressIT can be powered via built-in 5 V/2 A USB-DC terminal for self-contained on-ceiling installation. Compatibility with HDCP 2.3-protected 4K/60p video promotes smooth integration into your existing 4K-ready system infrastructure.



• 4K DIGITAL LINK Connection and Separate LAN Terminal 4K DIGITAL LINK transmits uncompressed 4K/60p (4.2.0) video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 50 m3. Optional ET-YFB200G DIGITAL LINK Switcher or ET-YFB100G Digital Interface Box simplify installation, reduce cabling and associated cost, and enhance system reliability. Alternatively, you can transmit 100Base-TX or 10Base-T compatible control signals via a separate LAN terminal, freeing up the 4K DIGITAL LINK connection for video-signal transmission.



• Highly Reliable Low-Maintenance Projection: Filterless heat-pipe-based cooling and hermetically sealed optical block support 20,000-hour maintenance-free projection. Multi-Laser Drive Engine has Failover Circuitry to maintain brightness in the event a laser diode fails.



• Multi-Laser Drive Engine with Unique Failover Circuitry Failover Circuitry limits brightness loss in the unlikely event of a single diode failure. Multi Laser Drive Engine features redundant laser modules that maintain image display even if a laser module fails. Failover Circuitry provides an invaluable layer of insurance in situations where image display must not be interrupted.



• 20,000 Hours1 of Maintenance-Free Operation To assure stable and reliable continuous operation, Panasonic implements a refined heat-pipe-based cooling system within the projector’s compact, easy-to-manage body dimensions. This filterless cooling system draws heat away from the optical block, which is hermetically sealed to prevent dust ingress in compliance with the industry’s toughest dust-proofing guidelines. Low-degradation laser modules, inorganic phosphor wheel, and filterless cooling system design contribute to 20,000 hours1 of maintenance-free projection.



• 24/7 Continuous Operation Supported by high-efficiency liquid cooling system, hermetically sealed and dust-resistant optical block, and low-degradation diodes grouped into multiple modules, SOLID SHINE Laser projectors can operate reliably 24 hours a day. These projectors are suited to continuous projection in exhibition and public display applications.

• Product Data Sheet
