NEC PE506WL Laser Projector

NEC PE506WL Laser Projector

Part Number: PE506WL
Our Price: $2,159.00
Availability: Usually ships the same business day


NEC PE506WL Laser Projector

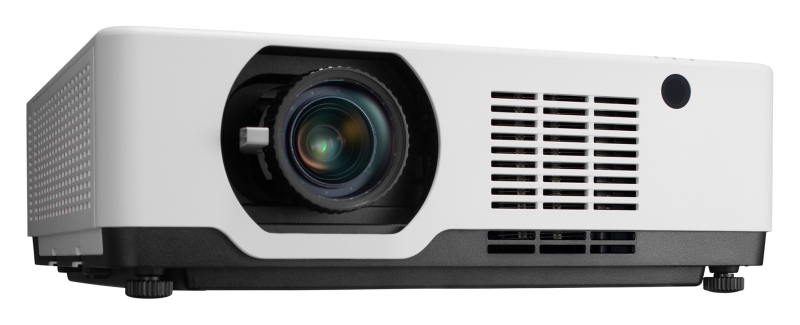

NEC PE506WL Projector

The NEC PE506WL Entry Installation Series, LCD, laser projector combines a unique set of features at a budget conscious price making it ideal for K12 and higher education classrooms as well as corporate conference rooms for small to medium sized business. With 5200 lumens, WXGA resolution and outstanding LCD color fidelity the PE Series delivers impressive images in demanding applications. Installation flexibility is achieved with a compact design and broad horizontal and vertical manual lens shift with a 1.6x zoom lens. The 20,000 hour laser life creates a low TCO projection solution. The NEC PE506WL is also marketed as the Dukane ImagePro 6652WL.

Key Features
  • 3,000,000:1 dynamic contrast ratio
  • High-performance video processing/scaling supports 4K/30 content
  • LCD technology delivers an impressive and accurate image
  • Horizontal & vertical lens shift enables flexible projector placement
  • Powerful 16W speakers provide the volume needed for most large classrooms and conference rooms
  • 4K ready - display stunning 4K 30Hz content using NEC's proprietary high-performance video processing/scaling chip
  • Eco-friendly features, minimal maintenance, and a cost-saving design


Detailed Specifications
Resolution:WXGA (1280 x 800)
Display Device:0.64" LCD
Brightness:5,200 ANSI Lumens
Contrast Ratio:3000000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to 1280x800 (WXGA)
Aspect Ratio:16:10
Number of Colors:1.07 billion colors
Typical Lamp Life:20,000 hour laser life
Lens:1.75x manual zoom , manual focus, F:1.7~2.21 /f=17.42~28.99mm
Throw Ratio:1.20:1 - 2.10:1
Image Size:29.65" - 300.12"
Throw Distance:4.4' - 25.5'
Keystone Correction: 30 horizontal (manual), 30 vertical (manual + auto)
Projection Methods:Front/Rear, Ceiling/Tabletop

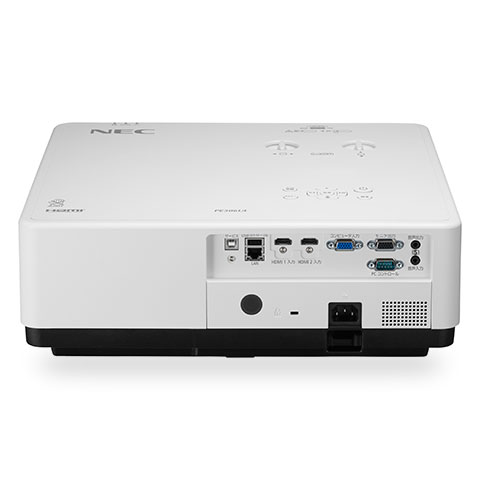

Inputs:HDMI x 2
VGA x 1
3.5mm Stereo Audio x 1
USB Type A x 1
USB Type B x 1
RJ45 x 1
RS232 x 1
Wired Remote In x 1
Outputs:VGA x 1
3.5mm Mini Jack Audio x 1
Wired Remote Out x 1
Speaker:16.0 Watts Mono
Audible Noise:37 dB / 27 dB
Weight:17.3 lbs.
Dimensions:H 5.40" x W 15.90" x D 14.70"
Accessories:Power Cord, VGA Cable, Remote Control, AAA Batteries x2, User Manual, Set Up Guide
Remote Control:Remote Control Included with Batteries
Mfg Warranty:5-year parts and labor warranty that includes InstaCare next-day business exchange
Product Data Sheet: Product Data Sheet
