Epson PowerLite L570U - V11HA98020

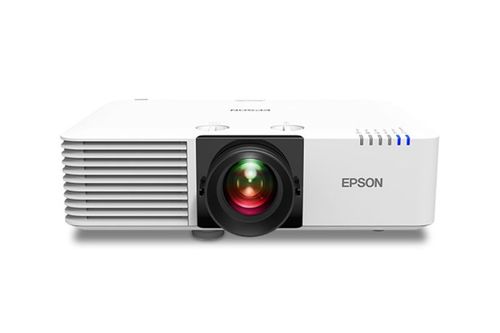

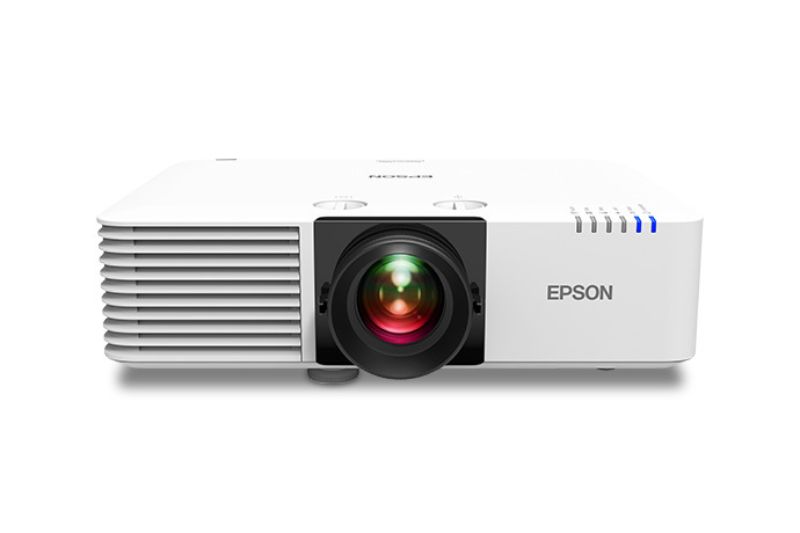

Epson PowerLite L570U 3LCD Laser Projector with 4K Enhancement

The versatile PowerLite L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement and 5,200 lumens of brightness, providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 500'', plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, the PowerLite L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000-hour virtually maintenance-free laser light source and air filter. Plus, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.

Key Features
  • Best-in-Class Color Brightness; 5,200 lumens
  • WUXGA with 4K Enhancement for clear, detailed images
  • 20,000-hour, virtually maintenance-free laser light source and air filter
  • Picture up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:3LCD Chips
Brightness:5,200 lumens
Contrast Ratio:2500000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200)
Aspect Ratio:16:10
Number of Colors:1.07 billion colors
Lamp:Laser Diode
Typical Lamp Life:Normal Mode: Up to 20,000 hours\Extended Mode: Up to 30,000 hours
Lens:Optical Zoom (manual), Focus (Manual), F-Number 1.51 – 1.77, Focal Length 20.0 mm – 31.8 mm
Throw Ratio:1.35:1 - 2.20:1
Image Size:50" - 500"
Throw Distance:7.8' - 47.5'
Keystone Correction:Horizontal: ± 30 degrees, Vertical: ± 30 degrees
Projection Methods:Front/rear/ceiling mount

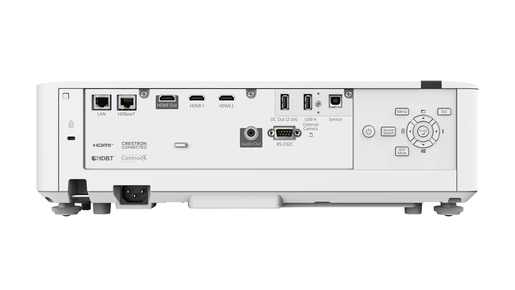

Inputs:HDMI x 2
USB Type A x 2
RJ45 x 1
RS232 x 1
Outputs:3.5mm Mini Jack Audio x 1
Speaker:10.0 Watts Mono
Audible Noise:31 dB / 23 dB (Eco)
Weight:18.7 lbs.
Dimensions:17.32" x 11.97" x 4.80"
Accessories:Power cable, computer cable (HDMI), projector remote control with batteries, Quick Reference card, cable cover
Remote Control:Remote Control Included with Batteries
Mfg Warranty:The projector has a limited warranty of 3 years. Epson Road Service program with free Next-Business-Day replacement10, PrivateLine® dedicated toll-free support (U.S. and Canada only)
Product Data Sheet: Product Data Sheet
