EIKI EK-850LU Laser Projector - NO LENS

Description

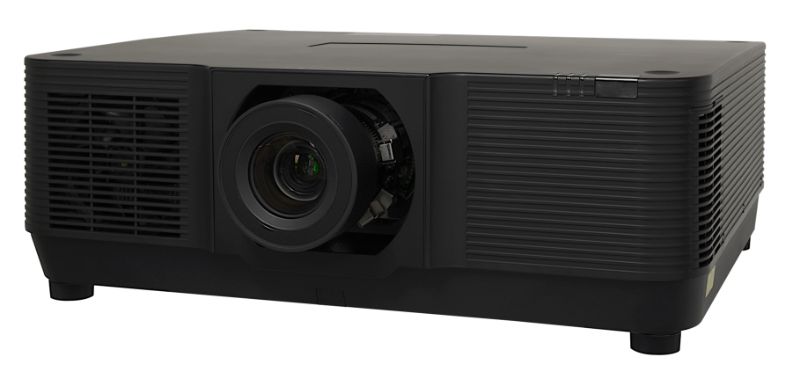

EIKI EK-850LU Laser Projector - NO LENS

WUXGA Large Class 3LCD Laser Projector

EIKI’s 3LCD laser light source EK-850LU is a versatile, low maintenance, large venue projector. This model offers high brightness and high color reproduction with the new 3LCD and laser light optical engine. Newly designed cooling system with sealed optical engine and filter-less design provides high performance and low fan noise.

The EK-850LU is a versatile installation projector with advanced keystone correction (4-corner, 6-corner), full 360° installation capability including portrait mode and a full suite of optional lenses.

Key Features

20,000 hour light source life
100,000:1 Contrast Ratio
3LCD + Laser Optical Engine
Supports 4K input
Flexible installation

360° free orientation
Portrait projection mode
Pin / Barrel Correction
Lens Shift (V: +50~-10% H: ±20% [AH-EC21020])
Keystone Correction (V/H: ±30°, 4-Corner, 6-Corner)

5 Optional Lenses
Sealed Optical Engine, No Filter

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.76" 3LCD
Brightness:	8500 Lumens
Contrast Ratio:	100000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to 4K (3840x2160)@30Hz
Aspect Ratio:	16:10
Number of Colors:	Full Color
Lamp:	Laser (Blue) + Phosphor
Typical Lamp Life:	20,000 Hours
Lens:	NO LENS
Throw Ratio:	Depends on Lens; Lens not included
Image Size:	Depends on Lens; Lens not included
Throw Distance:	Depends on Lens; Lens not included
Keystone Correction:	V/H: ±30°, 4-Corner, 6-Corner
Projection Methods:	Front/Rear; Tabletop/Ceiling Mount; Portrait Projection

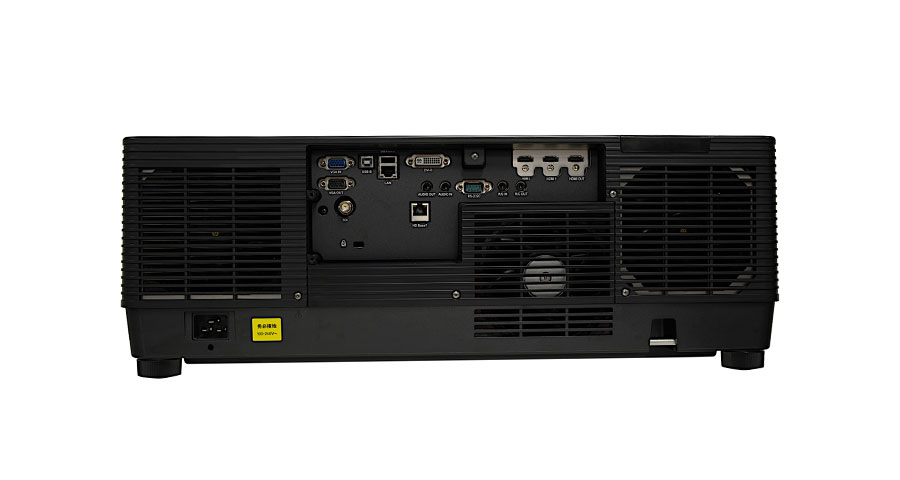

Inputs:	HDMI x 2 DVI x 1 VGA x 1 BNC x 1 3.5mm Stereo Audio x 1 USB Type A x 1 USB Type B x 1 RJ45 x 1 RS232 x 1 Wired Remote In x 1
Outputs:	HDMI x 1 VGA x 1 3.5mm Mini Jack Audio x 1 Wired Remote Out x 1
Speaker:	None
Audible Noise:	27dB/34dB
Weight:	52.9 lbs.
Dimensions:	23.6" x 8.6" x 19.8"
Accessories:	AC Power Cord x 2 (USA & Euro), VGA Cable x 1, Remote Control with Batteries, Quick Start Guide, Safety Guide
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	3 Year Projector Warranty
Product Data Sheet:	Product Data Sheet
