EIKI EK-309W LCD Projector

Description

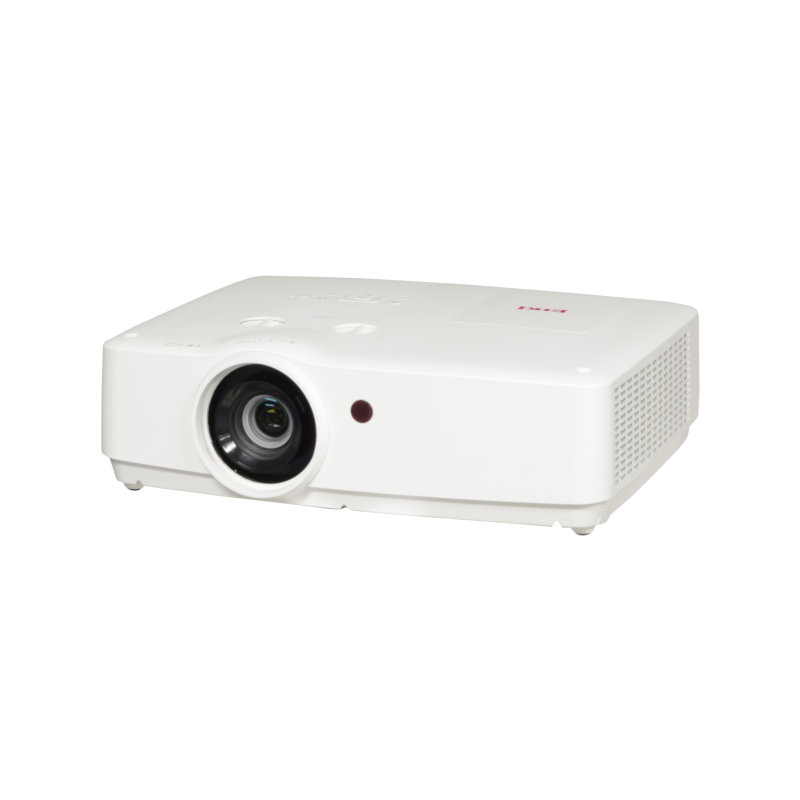

EIKI EK-309W LCD Projector

6,000 Lumens WXGA Projection

EK-308U and EK-309W are the highest brightness in EIKI's portable projectors. These projectors have fulfilling input terminals even with compact body and they can provide brighter and clear images. Flexible installation capabilities enable to install the place where it is hard to install.

Key Features

High Contrast Ratio 10,000 : 1 with IRIS on in Eco mode
OpticalZoom 1.6 x
Fulfilling I/O terminals

HDMI x 2
VGA x 2
USB-A x 1
USB-B x 1

Flexible installation

Lens Shift

H: +/- 9%
V: +/- 45%

Keystone Correction

H: +/- 15 °
V: +/- 30 °

Corner Correction
Curved Correction (EK-309W only)

Quick Power OFF
Built-in 10-Watt Audio Speaker

Specifications

Detailed Specifications
Resolution:	WXGA (1280 x 800)
Display Device:	0.64" 3LCD
Brightness:	6000 Lumens
Contrast Ratio:	10000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200)
Aspect Ratio:	16:10
Number of Colors:	Full Color
Lamp:	300W NSH
Typical Lamp Life:	3,000 / 4,000 Hours (Normal / Eco Mode)
Lens:	f = 1.6 - 1.9; FL = 0.602-0.97 in.
Throw Ratio:	1.07 - 1.75:1
Image Size:	30" - 300"
Throw Distance:	2.23' - 37.5'
Keystone Correction:	Vertical ±30°; Horizontal ±15°
Projection Methods:	Front/Rear; Ceiling Mount/Tabletop

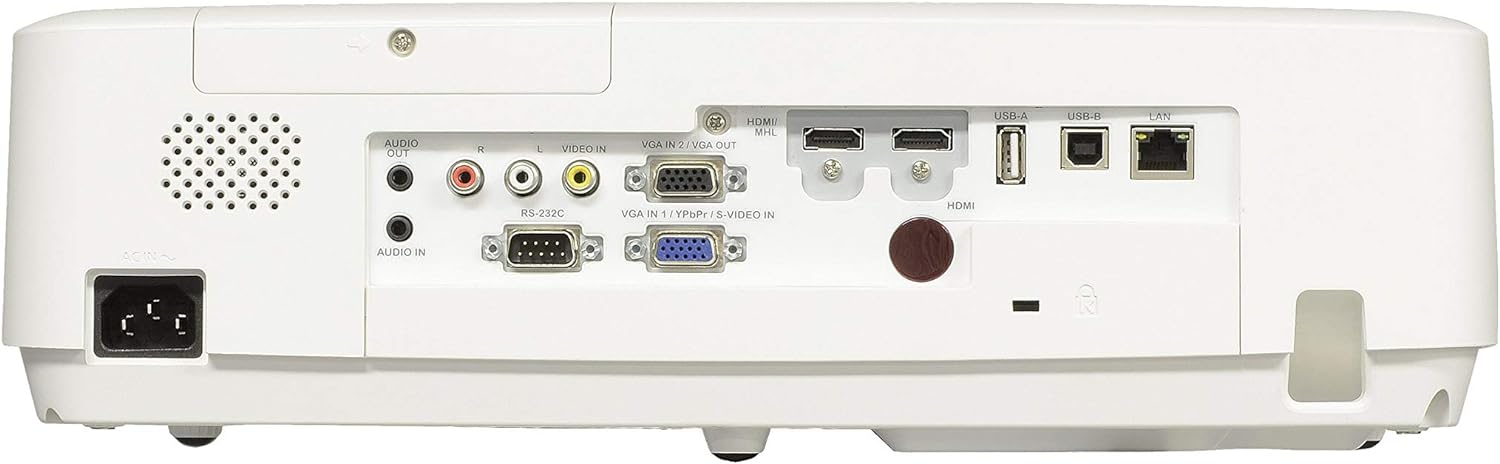

Inputs:	HDMI x 2 (1x MHL compatible) VGA x 2 Composite Video (RCA Yellow) x 1 3.5mm Stereo Audio x 1 RCA Audio (L/R) x 1 USB Type A x 1 USB Type B x 1 RJ45 x 1 RS232 x 1
Outputs:	VGA x 1 3.5mm Mini Jack Audio x 1
Speaker:	10W Mono
Audible Noise:	35.9dB / 40.9dB (Normal / Eco Mode)
Weight:	9.9 lbs.
Dimensions:	15.5" x 5" x 12.5"
Accessories:	AC Power Cord, HDMI Cable, VGA Cable, Remote Control with Batteries, Quick Start Guide, Safety Guide

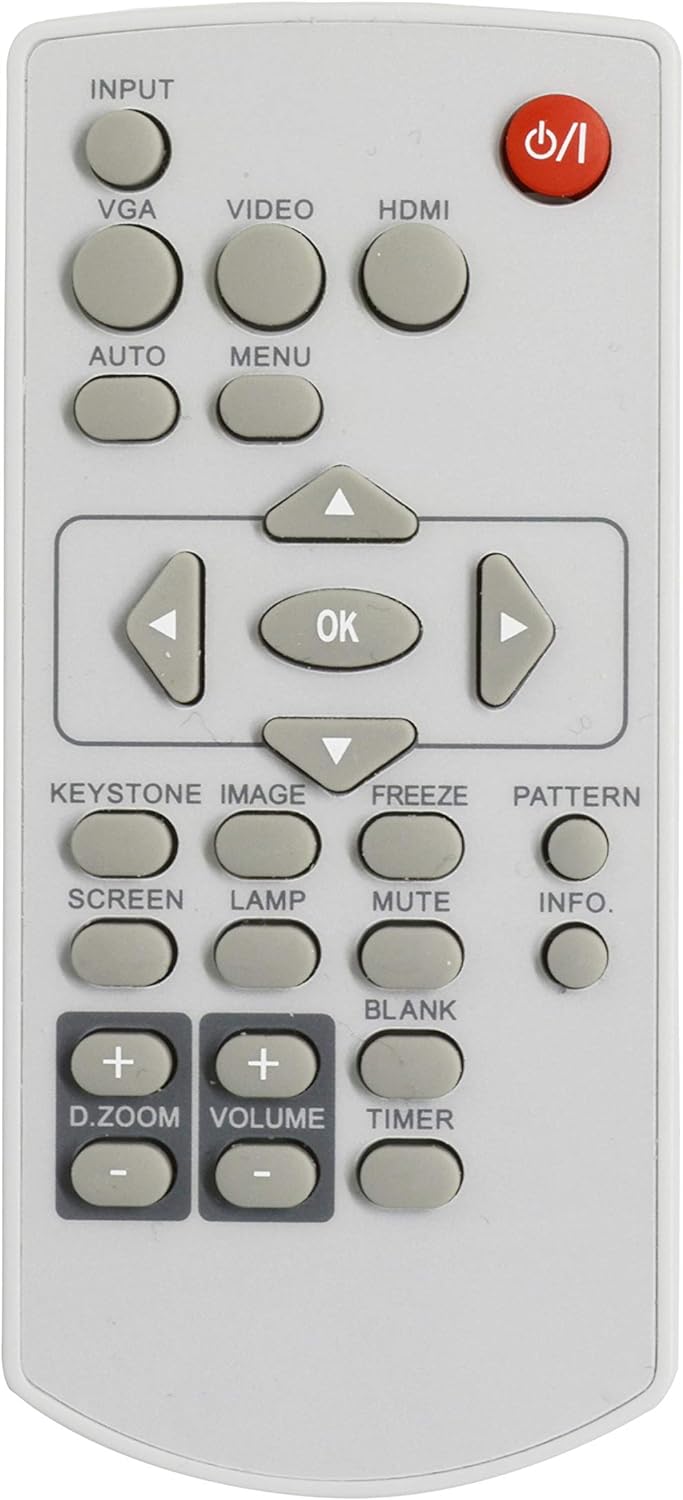

Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	EK309W
Product Data Sheet:	Product Data Sheet
