3D ReadyDigital Projection X-Vision WQ LED IR DLP Projector - NO LENS

Digital Projection X-Vision WQ LED IR DLP Projector - NO LENS

Part Number: X-Vision WQ LED IR
Our Price: $37,500.00
Availability: Usually ships the same business day

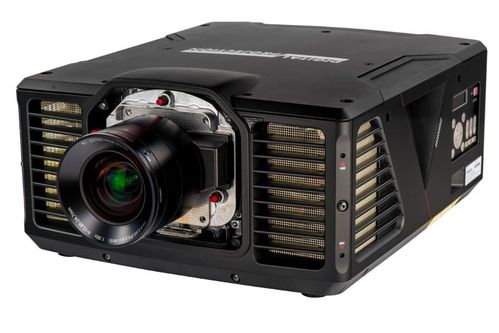

Digital Projection X-Vision WQ LED IR DLP Projector - NO LENS

The X-Vision WQ LED is DPís newest solution for complex simulation display needs. The X-Vision is engineered to handle full mission rotary & fast jet trainers as well as other simulation systems needing an out of the box, ready to use projector solution. Itís also available with a separate IR channel for finite control of true high fidelity stimulated NVG and can be combined to the RGB channel for lower fidelity stimulated NVG.

The X-Vision WQ LEDís WQXGA resolution, high bit depth, and LED dimming all work in conjunction to enable your database to show truly dark and detailed night scenes. For precise accuracy, the X-Vision WQ LED incorporates low latency & smear reduction technology and up to a 120 Hz update rate. These technologies enable users to recreate vivid realism in high-slew rate scenes without objectionable smear or lag. Another benefit of X-Visionís LED illumination system and processing is itís blending accuracy. Though blending multiple projectors is often a challenge, the X-Visionís brightness and color between projectors never vary far in color or brightness making blending imagery easier and more accurate in a multi-channel environment. The X-Visionís rugged design is ready out of the box and is engineered to run 24/7 with a LED illumination engine rated at 100,000-hours. All of that is backed up by DPís excellent service & support as well as a 5-year warranty.

The X-Vision WQ LED is an incredibly quiet running unit and featureís a fully sealed optical and filterless design that keeps out dust & contaminants to prolong the best performance over the long term. Additionally, the solid-state LED illumination system never needs maintenance and its low thermal profile ensures the projector electronics remain stress-free. In a rare event, if the X-Vision needed repairing, its modular design and short parts lists make it easy to service. Additionally, full training and service for the projector are available from Digital Projection.

Other features include simple control over the projectorís system with our networkable control software, centrally mounted lens, precision optics that feature super-fine control for focus, zoom, and shift, a broad selection of zoom lenses, multi-axis mounting capability, and multiple mounting points. All of this fits into an attractive, lightweight chassis that takes up a small footprint.

Also available is the X-Vision WU LED projector with WUXGA (1920 x 1200) resolution. Built with the same technology as the WQ LED, the WU-LED has 2,550 lumens in RGB mode and 4,250 in high-brightness mode.

Key Features
  • 2,500 lumens WQXGA RGB mode
  • 3,900 lumens WQXGA LED overlap mode
  • WQXGA Resolution (2560 x 1600)
  • Active 3D - up to WQXGA @ 120Hz, INFITECģ
  • Latency 120Hz at 10-12 milliseconds and 20ms at 60Hz
  • Contrast Ratio 1,600:1 - 8,000:1 sequential. >5,000,000:1 dynamic
  • 50,000+ Hour, maintenance free fully sealed RGB LED light source
  • Available with IR channel
  • 2 x Dual Link DVI inputs
  • DisplayPort 1.2
  • HDMI 2.0
  • WU LED: WUXGA Resolution (1920 x 1200)
  • WU LED: WUXGA at 2,550 lumens in RGB mode
  • WU LED WUXGA at 4,250 lumens WUXGA in brightness mode


Detailed Specifications
Resolution:WQXGA (2560x1600)
Display Device:1 x 0.94" WQXGA DMD
Brightness:2,300 ANSI / 2,600 ISO / 3,900 High Brightness Lumens
Contrast Ratio:5000000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WQXGA (2560 x 1600)
Aspect Ratio:16:10
Number of Colors:Full Color
Lamp:LED Light Engine
Typical Lamp Life:100,000 Hours
Throw Ratio:Depends on Lens; Lens not included
Image Size:Depends on Lens; Lens not included
Throw Distance:Depends on Lens; Lens not included
Keystone Correction:N/A
Projection Methods:Front/Rear; Tabletop/Ceiling Mount
Inputs:HDMI x 1
DVI x 2
DisplayPort x 1
RJ45 x 1
RS232 x 1
3D Sync x 2
Wired Remote In x 1
Audible Noise:32dBA
Weight:37.5 lbs.
Dimensions:18.98" x 15.96" x 8.39"
Remote Control:Remote Control Included with Batteries
Mfg Warranty:5 Year Manufacturer's Warranty
Product Data Sheet: Product Data Sheet
