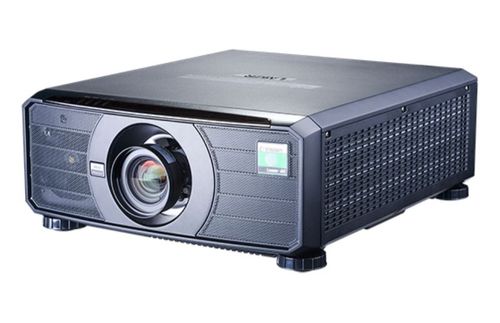

3D ReadyDigital Projection E-Vision Laser 10K Laser Projector - NO LENS

Digital Projection E-Vision Laser 10K Laser Projector - NO LENS

Part Number: E-Vision Laser 10K
Our Price: $18,995.00
Availability: Usually ships the same business day


Digital Projection E-Vision Laser 10K Laser Projector - NO LENS

Key Features
  • Video & Graphics Processing
    • HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats.
    • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources
    • Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
    • Synchronisation of active glasses.
    • 3GSDI with loop-through.
    • 24p and 1080p native display.
    • DICOM simulation mode.
  • Geometry Correction
    • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
    • Blanking control for custom input window sizing.
    • Scaling for fixed aspect ratio screens.
  • Edge Blending
    • For independent edge and blend width adjustment.
  • Picture in Picture
    • Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained.
  • HDBaseT® Interface
    • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
    • Allows the projector to be placed up to 100m from the source with low cost cabling.
  • Colour Processing
    • Powerful seven point colour correction for accurate colour matching.
  • Projector Controller Software
    • Intuitive user interface for network control
    • Simultaneous control of user-defined groups of projectors
    • At-a-glance monitoring of projector status
  • Projector Automation
    • Real-time clock provides daily on/off automation.
  • Projector Maintenance Features
    • Sealed optics.
    • Long life 20,000 hour illumination.


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:1 x 0.67" DarkChip™ DMD™
Brightness:9,500 ANSI / 10,500 ISO Lumens
Contrast Ratio:10000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200)
Aspect Ratio:16:10
Number of Colors:Full Color
Lamp:Laser Light Engine
Typical Lamp Life:Up to 20,000 Hours
Throw Ratio:Depends on Lens; Lens not included
Image Size:Depends on Lens; Lens not included
Throw Distance:Depends on Lens; Lens not included
Keystone Correction:Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
Projection Methods:Front/Rear; Tabletop/Ceiling Mount
Inputs:HDMI x 2
DVI x 1
DisplayPort x 1
VGA x 1
5BNC x 1
BNC x 1
RJ45 x 1
RS232 x 1
3D Sync x 2
12-Volt Trigger x 2
Wired Remote In x 1
Outputs:VGA x 1
BNC x 1
Audible Noise:Normal mode: 42 dBA Typical
Eco mode: 39 dBA Typical
Weight:62 lbs.
Dimensions:23.55" x 19.68" x 8.60"
Remote Control:Remote Control Included with Batteries
Mfg Warranty:5 Year Manufacturer's Warranty
Product Data Sheet: Product Data Sheet
