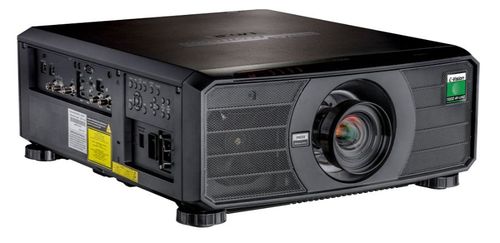

Digital Projection E-Vision 11000 4K-UHD Laser Projector - NO LENS
Description
Digital Projection E-Vision 11000 4K-UHD Laser Projector - NO LENS
Key Features
Key Features
- Video & Graphics Processing
- Two projectors in one - 4K-UHD and WQXGA+
- DisplayPort 1.2 with HDCP 2.2
- 2 x HDMI 2.0 with HDCP 2.2
- 2 x HDMI 1.4b inputs with HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
- Sequential Processing: 3D via single HDMI 1.4b input
- Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs
- Synchronisation of active glasses
- 3G-SDI with loop-through
- DICOM simulation mode
- Geometry Correction
- Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
- User definable custom warp
- Digital zoom, pan and scan.
- Independent four boundary blanking control for custom input window sizing
- Scaling available for fixed aspect ratio screens.
- Unscaled processing for pixel mapped display.
- Edge Blending
- Blending control available for all sides with width control.
- Correction for non-active pixels at the edge of the display.
- Picture in Picture
- Two sources can be displayed simultaneously using 2D inputs with the original aspect ratios maintained
- HDBaseT® Interface
- Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
- Allows projector to be placed up to 100m from source with low cost cabling
- Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4
- Color Processing
- Four colour modes available: ColorMax / Manual Color Matching / Color Temperature / Gains and Lifts
- Powerful seven point colour correction for accurate colour matching with presets
- Easy colour temperature selection
- Manual seven point colour adjustment
- Traditional lifts and gains
- Projector Controller Software
- Intuitive user interface for network control
- Simultaneous control of user-defined groups of projectors
- At-a-glance monitoring of projector status
- Projector Automation
- Real-time clock provides daily on/off automation
- E-mail alerts for system status
Specifications
| Detailed Specifications | |
| Resolution: | 4K (4096x2160) |
| Display Device: | 1 x 0.67" WQXGA+ TRP UHD DMD™ |
| Brightness: | 9,500 ANSI / 10,500 ISO Lumens |
| Contrast Ratio: | 6000:1 |
| Video Signals: | NTSC, PAL, SECAM; Computer signals up to 4K-UHD (3840x2160) |
| Aspect Ratio: | 16:9 |
| Number of Colors: | Full Color |
| Lamp: | Laser Light Engine |
| Typical Lamp Life: | Up to 20,000 Hours |
| Lens: | NO LENS |
| Throw Ratio: | Depends on Lens; Lens not included |
| Image Size: | Depends on Lens; Lens not included |
| Throw Distance: | Depends on Lens; Lens not included |
| Keystone Correction: | Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation |
| Projection Methods: | Front/Rear; Tabletop/Ceiling Mount |
| Inputs: | HDMI x 4 DisplayPort x 1 BNC x 1 RJ45 x 2 RS232 x 1 3D Sync x 3 12-Volt Trigger x 2 Wired Remote In x 1 |
| Outputs: | BNC x 1 |
| Speaker: | None |
| Audible Noise: | Smooth Picture On: Normal mode: typical 43 (max 45) dBA Eco mode: typical 39 (max 41) dBA Smooth Picture Off: Normal mode: typical 42 (max 44) dBA Eco mode: typical 38 (max 40) dBA |
| Weight: | 63.34 lbs. |
| Dimensions: | 23.55" x 19.68" x 8.60" |
| Accessories: | N/A |
| Remote Control: | Remote Control Included with Batteries |
| Mfg Warranty: | 5 Year Manufacturer's Warranty |
| Product Data Sheet: |  Product Data Sheet |
