Part Number: 171-030104-01
Our Price: $7,995.00
Availability: Usually ships the same business day
Projector Calculator

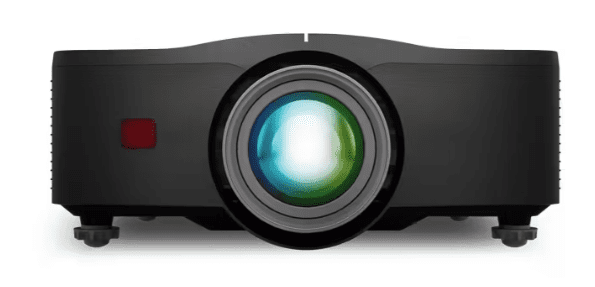

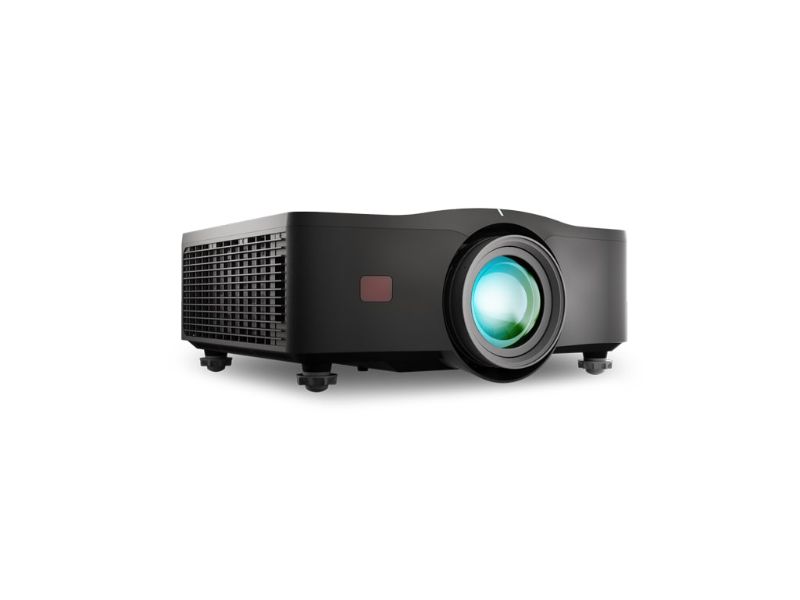

Christie 171-030104-01 DLP Projector

Christie DWU860-iS Black 1DLP Solid State WU 1920X1200 8500lms

Christie Inspire Series 1DLP® laser projectors offer amazing value without sacrificing performance. This 1.25-2.0:1 fixed zoom lens projector offers 24/7 operation, IP5X dust-resistant optical engine, a motorized zoom lens, and whisper-quiet operation. The DWU860-iS is a professional-grade choice for boardrooms, classrooms, and other small-to-mid-size environments without breaking the bank. The laser illumination system offers up to 20,000 hours of reliable, virtually maintenance-free operation for a low total cost of ownership.

Built-in warping, blending and alignment that go beyond the standard. With onboard Christie Twist™, our proprietary advanced image warping and blending software, you can go beyond standard built-in projector blending. You can blend and warp as many as 6 arrayed projectors and up to 81 grid control points. Need more? You can easily upgrade to Twist Premium or Twist Pro.

Inspire Series projectors are also ready for you to add Christie Mystique Lite to automatically blend up to 3 projectors at the touch of a button. You can download Mystique Lite at no additional cost or easily upgrade to a more advanced edition of Mystique for a wider variety of projector arrays and applications. Backed by a 3-year warranty and a price-point that fits your budget, it’s the smart choice for 6,000-8,000 lumen projectors.

Key Features
  • Motorized lens for simple powered zoom, focus, and offset using the remote control
  • 24/7 performance – For continuous ‘all day, every day’ operation with industry-proven components that help ensure reliability
  • WUXGA resolution
  • IP5X dust-resistant – Inspire Series’ airtight optical engine resists dust particles, ensuring long-lasting reliability, and almost zero-maintenance performance
  • Omnidirectional – Operates in any orientation for unlimited installation flexibility
  • Built-in warping, blending, & alignment – Proprietary Christie Twist™ and Christie Mystique™ compatibility, for manual or automated camera-based warping, blending, and alignment
  • Eco Mode – Reduces brightness to 50%, significantly extends the lifetimes of your projector, and results in quieter operation
  • Supports Full HD 3D content – For 3D with a single or multi-projector setup via 3D sync in/out capabilities
  • HDBaseT – Delivers Full HD video, audio, network, and control commands on a single ethernet cable
  • AMX & Crestron connectivity – For enhanced collaboration and easy integration into virtually any existing boardroom


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:1-chip 0.67" DMD
Contrast Ratio:3000000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to 1920x1200
Aspect Ratio:16:10
Number of Colors:Full Color
Lamp:Laser Phosphor
Typical Lamp Life:20,000 hours
Lens:1.6x Powered zoom , Powered focus
Throw Ratio:1.25:1 - 2.00:1
Image Size:49.60" - 300.00"
Throw Distance:7.0' - 26.5'
Keystone Correction:Horizontal +/-50% & Vertical +/-110%
Projection Methods:N/A
Inputs:HDMI x 2
VGA x 1
3.5mm Stereo Audio x 1
USB Type A x 1
RJ45 x 1
Speaker:10 Watts × 2
Audible Noise:34 dB/32 dB
Weight:38 lbs.
Dimensions:5.70" x 16.00" x 18.90"
Accessories:Power cable, Computer Cable, Lens cover and cap, IR remote controller (batteries not included)
Remote Control:Remote Control Included
Mfg Warranty:3 Years
Product Data Sheet: Product Data Sheet
