Yamaha 8 x 1.5" Full-range drivers; 70Hz-20kHz; H170° x V40° coverage; 80w (PGM) @ 16?; white finish, - yamaha-vxl1w-8

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

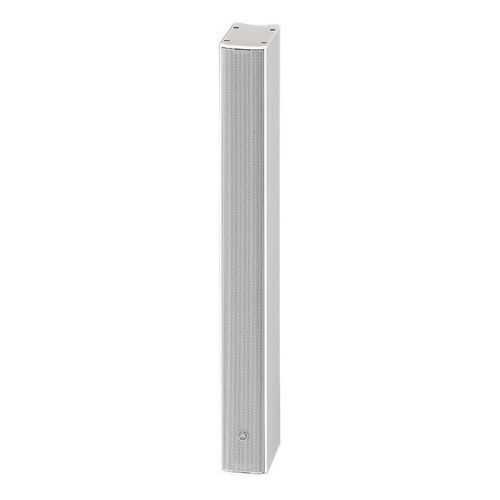

Yamaha VXL1W-8 8 Full Range - 1.5 Inch Drivers - 40W - Program At 16 Ohm

The VXL series includes three models VXL1-8, VXL1-16 and the VXL1-24 each featuring 1.5 inch full range drivers, that can be combined to optimally serve a variety of installations and spaces. The slim 2.1-inch (54mm) wide enclosures feature elegantly curved grille designs that blend beautifully with any décor to deliver superior and uniform speech and music reproduction in a wide variety of applications.

Key Features

1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
170° horizontal and 40° vertical dispersion for uniform SPL over a wide area
Slim design complements any interior décor
Enclosures can be painted to match surroundings
Speaker Type: FUll-range, Bass reflex

Specifications

Speaker Type	Full-range, Bass reflex
Frequency Range (-10dB)	70 Hz - 20 kHz 110 Hz - 20kHz 1 (w/ port cover)
Coverage Area	Horizontal: 170°, Vertical: 40°
Components (LF-HF)	1.5" (3.75 cm) Cone + 8
Power Rating (Noise/PGM/Peak)	40 W / 80 W / 160 W
Nominal Impedance	16?
SPL Sensitivity (W; 1m on axis)	89 dB SPL (1 m/1 W)
I/O Connectors	Euroblock (2 pin) + 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
