Yamaha VXC8SB 8" Band-Pass In-Ceiling 200W Subwoofer with AB-C8S Kit

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

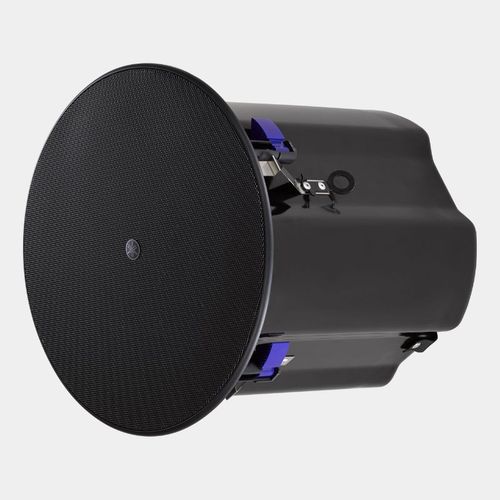

Yamaha VXC8SB 8" Band-Pass In-Ceiling 200W Subwoofer with AB-C8S Kit, Black

VXC series “S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.

Key Features

Sound and size ideally matched to the VXS and VXC series
Band-pass design ensures smooth, distortion-free low-frequency extension
Direct support for low-impedance or high-impedance connections
Built-in carrying band increases safety during installation
Anti-drop tab mechanism provide secure temporary positioning during installation
Double-threaded speaker clamp screws for speedy tightening

Specifications

Speaker type	Band-pass type Subwoofer
LF Component	8" Cone
Frequency Range (-10 dB)	44 Hz - 200 Hz (Half-space 2?)
Nominal impedance	8 ?
SPL Sensitivity (1W; 1m on axis)	88 dB SPL (Half-space 2?)
I/O connectors	Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Cutout size	Ø285 mm (Ø11-7/32")
Power rating	NOISE 100 W, PGM 200 W
