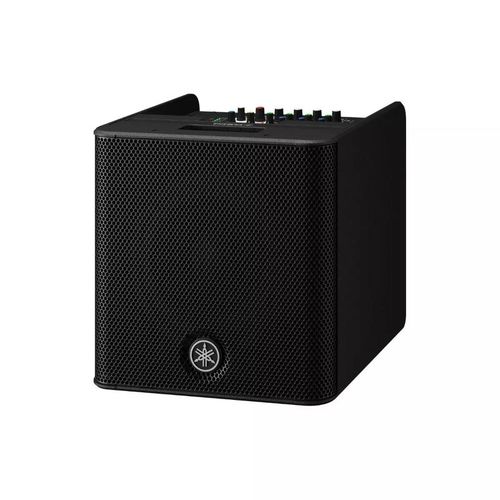

STAGEPAS 200BTR Portable PA System

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Yamaha STAGEPAS 200BTR PORTABLE PA SYSTEM
With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200BTR is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of live sound features, and superb overall performance, your audience will be stunned by the sound, that comes from this powerful, yet compact setup.
The STAGEPAS 200BTR is equipped with a 180 W power amp, coaxial compression driver with 1.4 voice coil HF and 8 cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.
- 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
- 1.4 HF + 8 LF high-quality coaxial compression driver
- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor MODE
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Equipped with link-out/monitor out
Specifications
| Mixing channels | 5 (Mono x3 + Stereo x1) |
| Input channel functions | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST |
| Output channel functions | MODE (SPEECH/MUSIC/CLUB) |
| DSP | SPX digital reverb, delay, chorus |
| Speaker type | Coaxial speaker with compression driver |
| Frequency range (-10dB) | 60 Hz 20 kHz |
| Coverage area | H90? x V90? |
| Crossover | 2.0 kHz |
| LF | 8" Cone, 2.0" voice coil |
| HF | 1" throat compression driver, 1.4" voice coil |
