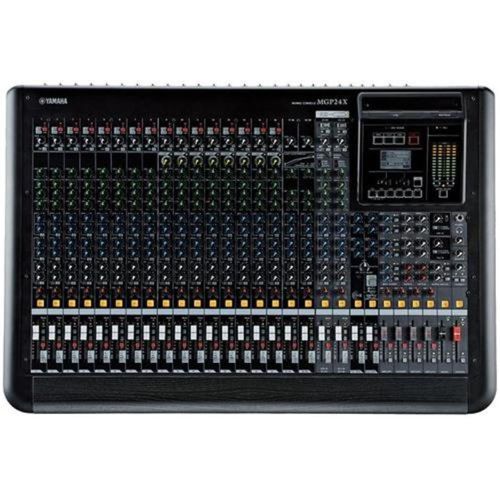

Yamaha 24-Input Hybrid Digital/Analog Mixer with USB Rec/Play and Effects - MGP24X

Familiar analog controls with digital option.

The MGP24X is a 24-channel mixing console with iPhone®/iPod® connectivity, compression and digital effects. This mixer is appropriate to a wide range of professional applications from portable P.A. to fixed installation. The MGP24X features: 16 Mic Inputs with 48V Phantom Power and HPF per Channel, 24 Line Inputs (16 mono and 4 stereo), 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, and 1 Mono out. Great sounding microphone preamps, detailed EQ, quality digital effects and broad digital connectivity.

Features

• 16 Mic Inputs with 48V Phantom Power and HPF per Channel
• 24 Line Inputs (16 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out

Specifications:

• Mixing capability
• Mixing channels 24 Line Inputs (16 mono and 4 stereo)
• GROUP 4 GROUP Buses + ST Bus
• AUX 6 AUX Sends + 2 FX Sends
• MATRIX 1 Matrix out
• On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

I/O

• Mic inputs MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
• Phantom power 48V phantom power per channel
• Line inputs LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
• Digital I/O USB Device, iPod / iPhone

General Specifications:

• Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu)
• Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
• Hum & noise level Equivalent input noise -128 dBu Equivalent Input Noise
• Residual output noise -94 dBu Residual Output Noise
• Crosstalk -74dB @ 1kHz
• Power requirements 100-240V 50Hz/60Hz
• Power consumption 86W max
• Dimensions W 32.2" x H 6.7" x D 22.2"
• Net weight (34.2lb)
