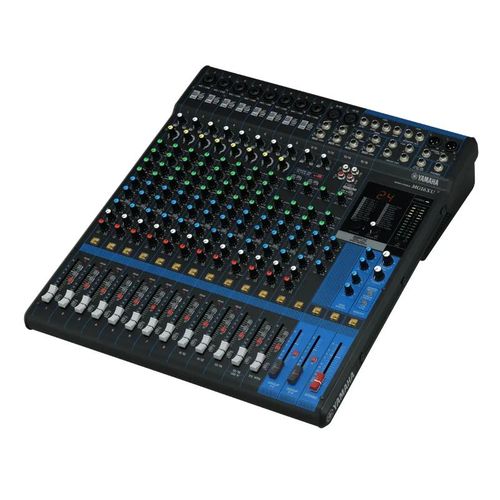

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX) MG16XU

Part Number: MG16XU
Our Price: $717.00
Availability: Contact us for availability
-
+

Description

Portable and powerful

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX) ? MG16XU

Features
  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • ?D-PRE? mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W?H?D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • Net Weight: 6.8 kg (15.0 lbs.)

Specifications

On-board processorsSPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
Phantom power+48 V
Digital I/OUSB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Mono[MIC/LINE]8
Mono/Stereo[MIC/LINE]2
Stereo[LINE]2
STEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND4
GROUP OUT4
BusStereo: 1, GROUP: 4, AUX: 4 (incl. FX)
PAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: Mono 250 Hz 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
