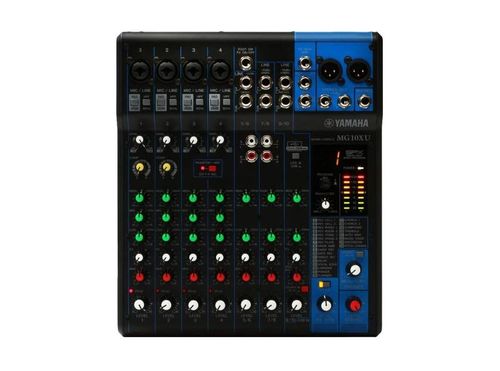

10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX) MG10XU

Part Number: MG10XU
Our Price: $289.00
Availability: Contact us for availability
-
+

Description

Portable and powerful

10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX) ? MG10XU

Features
  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • ?D-PRE? mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W?H?D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
  • Net Weight: 2.1 kg (4.63 lbs.)

Specifications

On-board processorsSPX algorithm: 24 programs
Phantom power+48 V
Digital I/OUSB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Mono[MIC/LINE]4
Stereo[LINE]3
STEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND1
BusStereo: 1, AUX[FX]: 1
PAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
COMP1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
