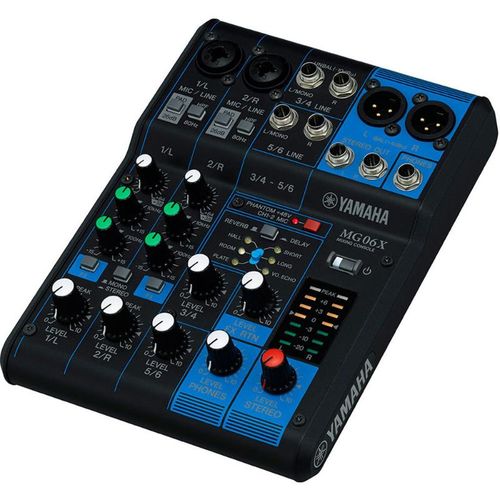

6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus MG06X

Part Number: MG06X
Our Price: $187.00
Availability: Usually ships the same business day
-
+

Description

6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus ? MG06X

Features
  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • ?D-PRE? mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
  • Dimensions(W?H?D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
  • Net Weight: 0.9 kg (1.98 lbs.)

Specifications

On-board processorsSPX algorithm: 6 programs
Phantom power+48 V
Mono[MIC/LINE]2
Stereo[LINE]2
STEREO OUT2
PHONES1
BusStereo: 1
PAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
