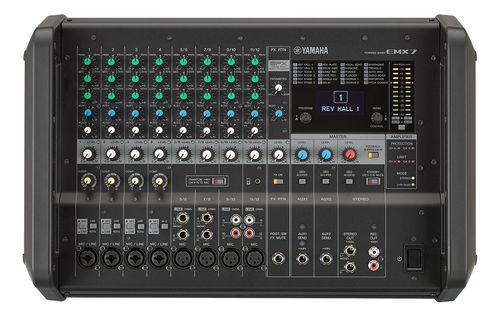

Yamaha Portable 1420W Powered Mixer - EMX7

Yamaha Portable 1420W Powered Mixer - EMX7

Part Number: EMX7
Our Price: $899.99
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Get Serious About Your Sound

The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Key Features
  • Powerful & High Efficiency Class-D Amplifier
  • Robust But Extremely Portable Design
  • Easy Setup, Easy Operation
  • Complete Range of Input & Output Channels
  • Speaker Processor and Preset (EMX7 only)
  • Onboard Feedback Suppressor
  • 3-band Equalizer Control
  • Flex 9 Graphic Equalizer (EMX7 only)
  • 1-knob COMP
  • Rack-Mounting
  • Comprehensive, Professional Effects and Signal Processing
  • Flexible Speaker Connectivity
  • Internal Universal Power Supply

Specifications

OutlineEMX7EMX5
I/OInputsTOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power+48 V+48 V
OutputsSPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and othersFOOT SWITCH : Effect Mute on/offFOOT SWITCH : Effect Mute on/off
BusStereo: 1, AUX: 2 (Including FX)Stereo: 1, AUX: 2 (Including FX)
Input Channel FunctionPAD30 dB (CH1-4)30 dB (CH1-4)
Hi-ZSupported (CH4)Supported (CH4)
HPF 80 Hz, -12 dB/oct. (CH1–3)80 Hz, -12 dB/oct. (CH1–3)
COMP1-knob COMP (CH1–4)1-knob COMP (CH1–4)
EQ HIGH10 kHz +15 dB / -15 dB (Shelving)10 kHz +15 dB / -15 dB (Shelving)
EQ MID2.5 kHz +15 dB / -15 dB (Peaking)2.5 kHz +15 dB / -15 dB (Peaking)
EQ LOW100 Hz +15 dB / -15 dB (Shelving)100 Hz +15 dB / -15 dB (Shelving)
On-board processorsDSPSPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processorSPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiersMaximum output power @4ohms1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
Maximum output power @8ohms1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
Level Meter2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
General specificationsEMX7EMX5
Frequency responseInput to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHzInput to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortionInput to SPEAKERS: MIC/LINE =LINE (CH1–4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1–4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise levelEquivalent input noise-117 dBu (Noise is measured with A-weighting filter)-117 dBu (Noise is measured with A-weighting filter)
Residual output noiseInput to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk-85 dB (1 kHz, Measured with 1 kHz band pass filter)-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuitLoad protectionDC-faultDC-fault
Amplifier protectionOver heat protection, Over current protection, Integral power protectionOver heat protection, Over current protection, Integral power protection
Power supply protectionOver heat protection, Over current protectionOver heat protection, Over current protection
Power requirementsAC 100-240V, 50Hz/60HzAC 100-240V, 50Hz/60Hz
Power consumption45 W (Idle) / 250 W (1/8 Power)42 W (Idle) / 210 W (1/8 Power)
DimensionsW465 mm (18 5/16")465 mm (18 5/16")
H308 mm (12 1/8")308 mm (12 1/8")
D325 mm (12 13/16")325 mm (12 13/16")
Net weight9.5 kg (20.9 lbs)9.5 kg (20.9 lbs)
AccessoriesOwner’s Manual, Technical Specifications, AC power cord (2.5 m)Owner’s Manual, Technical Specifications, AC power cord (2.5 m)
OptionsFoot switch: FC5, Rack-mount brackets: RK-EMX7Foot switch: FC5, Rack-mount brackets: RK-EMX7
OthersOperating Temperature : 0 to +40°COperating Temperature : 0 to +40°C

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 ? All level controls are at their maximum position if not specified.)





Input Characteristics
Input JackMIC/LINEHi-Z
CH 1-4XLRMIC-
LINE-
PhoneMIC-
LINE-
CH 4 (Hi-Z)PhoneMICON
LINEON
CH 5/6, 7/8XLR--
Phone--
CH 9/10, 11/12XLR--
Pin--
CH 11/12Mini jack--

(0 dBu = 0.775 Vrms)

*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)

*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.

*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD

*4 Tip = Signal, Sleeve = GND

*5 1 = GND, 2 = HOT, 3 = COLD

*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND





Output Characteristics
Output JackActual Source ImpedanceFor Use with NominalOutput level Nominal
STEREO OUT L, R600 ?10 k? Lines+4 dBu (1.228 V)
AUX SEND 1, 2600 ?10 k? Lines+4 dBu (1.228 V)
REC OUT L, R600 ?10 k? Lines-10 dBV (0.308 V)

(0 dBu = 0.775 Vrms)

*1 1+ = Positive, 1- = Negative

*2 Tip = Positive, Sleeve = Negative
