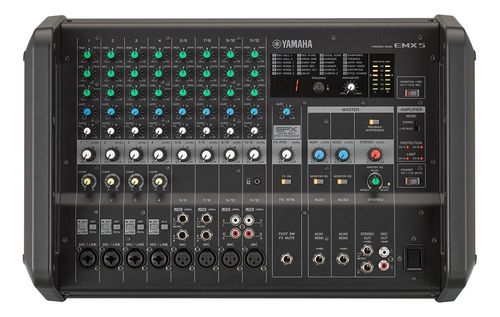

Yamaha Portable 1260W Powered Mixer - EMX5
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Get Serious About Your Sound
The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.
Key Features- Powerful & High Efficiency Class-D Amplifier
- Robust But Extremely Portable Design
- Easy Setup, Easy Operation
- Complete Range of Input & Output Channels
- Onboard Feedback Suppressor
- 3-band Equalizer Control
- 1-Knob Master EQ™ (EMX5 only)
- 1-knob COMP
- Rack-Mounting
- Comprehensive, Professional Effects and Signal Processing
- Flexible Speaker Connectivity
- Internal Universal Power Supply
Specifications
| Outline | EMX7 | EMX5 | |
|---|---|---|---|
| I/O | Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
| Phantom power | +48 V | +48 V | |
| Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] | |
| Control and others | FOOT SWITCH : Effect Mute on/off | FOOT SWITCH : Effect Mute on/off | |
| Bus | Stereo: 1, AUX: 2 (Including FX) | Stereo: 1, AUX: 2 (Including FX) | |
| Input Channel Function | PAD | 30 dB (CH1-4) | 30 dB (CH1-4) |
| Hi-Z | Supported (CH4) | Supported (CH4) | |
| HPF | 80 Hz, -12 dB/oct. (CH1–3) | 80 Hz, -12 dB/oct. (CH1–3) | |
| COMP | 1-knob COMP (CH1–4) | 1-knob COMP (CH1–4) | |
| EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) | 10 kHz +15 dB / -15 dB (Shelving) | |
| EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) | 2.5 kHz +15 dB / -15 dB (Peaking) | |
| EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) | 100 Hz +15 dB / -15 dB (Shelving) | |
| On-board processors | DSP | SPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ |
| On-board amplifiers | Maximum output power @4ohms | 1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W | 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W |
| Maximum output power @8ohms | 1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W | 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W | |
| Level Meter | 2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK) | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) | |
| Level Meter | 2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK) | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) | |
| General specifications | EMX7 | EMX5 | |
| Frequency response | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz | |
| Total harmonic distortion | Input to SPEAKERS: MIC/LINE =LINE (CH1–4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1–4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) | Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) | |
| Hum & noise level | Equivalent input noise | -117 dBu (Noise is measured with A-weighting filter) | -117 dBu (Noise is measured with A-weighting filter) |
| Residual output noise | Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) | Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) | |
| Crosstalk | -85 dB (1 kHz, Measured with 1 kHz band pass filter) | -85 dB (1 kHz, Measured with 1 kHz band pass filter) | |
| Protection circuit | Load protection | DC-fault | DC-fault |
| Amplifier protection | Over heat protection, Over current protection, Integral power protection | Over heat protection, Over current protection, Integral power protection | |
| Power supply protection | Over heat protection, Over current protection | Over heat protection, Over current protection | |
| Power requirements | AC 100-240V, 50Hz/60Hz | AC 100-240V, 50Hz/60Hz | |
| Power consumption | 45 W (Idle) / 250 W (1/8 Power) | 42 W (Idle) / 210 W (1/8 Power) | |
| Dimensions | W | 465 mm (18 5/16") | 465 mm (18 5/16") |
| H | 308 mm (12 1/8") | 308 mm (12 1/8") | |
| D | 325 mm (12 13/16") | 325 mm (12 13/16") | |
| Net weight | 9.5 kg (20.9 lbs) | 9.5 kg (20.9 lbs) | |
| Accessories | Owner’s Manual, Technical Specifications, AC power cord (2.5 m) | Owner’s Manual, Technical Specifications, AC power cord (2.5 m) | |
| Options | Foot switch: FC5, Rack-mount brackets: RK-EMX7 | Foot switch: FC5, Rack-mount brackets: RK-EMX7 | |
| Others | Operating Temperature : 0 to +40°C | Operating Temperature : 0 to +40°C | |
(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 ? All level controls are at their maximum position if not specified.)
| Input Jack | MIC/LINE | Hi-Z | |
|---|---|---|---|
| CH 1-4 | XLR | MIC | - |
| LINE | - | ||
| Phone | MIC | - | |
| LINE | - | ||
| CH 4 (Hi-Z) | Phone | MIC | ON |
| LINE | ON | ||
| CH 5/6, 7/8 | XLR | - | - |
| Phone | - | - | |
| CH 9/10, 11/12 | XLR | - | - |
| Pin | - | - | |
| CH 11/12 | Mini jack | - | - |
(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND
| Output Jack | Actual Source Impedance | For Use with Nominal | Output level Nominal |
|---|---|---|---|
| STEREO OUT L, R | 600 ? | 10 k? Lines | +4 dBu (1.228 V) |
| AUX SEND 1, 2 | 600 ? | 10 k? Lines | +4 dBu (1.228 V) |
| REC OUT L, R | 600 ? | 10 k? Lines | -10 dBV (0.308 V) |
(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative
