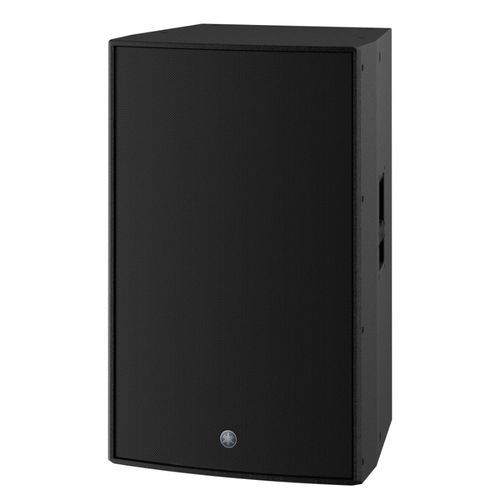

Yamaha 15" 3-Way Bi-Amped Powered Loudspeaker - DZR315

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Powered Loudspeaker

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction - the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Key Features

3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DZR315)

Specifications

General Specifications		DZR315
Speaker Type		3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB)		31Hz - 20kHz
Coverage Area		H75ﾟ x V50ﾟ
Components	LF	15" Cone, 3" Voice Coil, Neodymium magnet
	MF	8" Cone, 1.5" Voice Coil, Ferrite magnet
	HF	2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover		700Hz (FIR-X), 2.5kHz (Passive)
Sampling Frequency Rate	Internal	96kHz and FIR Filter
A/D D/A Converters		96kHz AD/DA
Maximum output level (1m; on axis)		143dB SPL *1
SRC		No
Power rating	Dynamic	2000W (LF:1000W, MF/HF: 1000W) *2
Power rating	Continuous	1300W (LF: 920W, MF/HF: 380W)
I/O Connectors	Analog I/O	Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
	Digital I/O	-
	Others	USB2.0 Host 5V 500mA for USB memory DATA storage/load
	AC	IEC AC inlet x1 (V-Lock)
Amplifier class		Class-D
Cooling		Fan cooling, Variable speeds
Power consumption		45W (Idle), 150W (1/8)
Handle		Aluminium die-cast, Side x2
Rigging		M10 x16
Dimensions	W	550 mm (21.6")
	H	897 mm (35.3") (with rubber feet)
	D	520 mm (20.5")
Net weight		41.6kg (91.7lbs)
Options		Cover: SPCVR-DZR315
Others		Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle		-
Pole Socket		-
