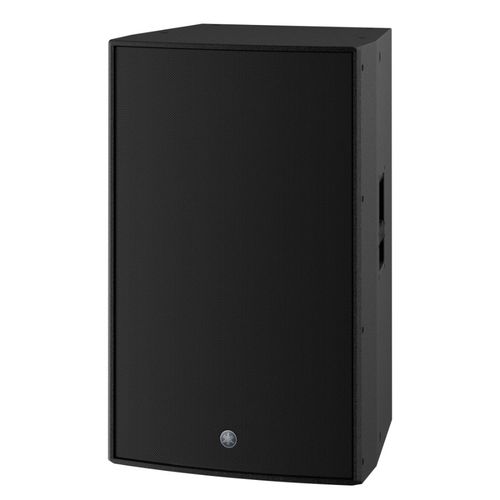

Yamaha 15" DANTE 3-Way Bi-Amped Powered Loudspeaker - DZR315-D

Yamaha 15" DANTE 3-Way Bi-Amped Powered Loudspeaker - DZR315-D

Part Number: DZR315-D
Our Price: $1,909.99
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Powered Loudspeaker

The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Key Features
  • 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR315)

Specifications

General SpecificationsDZR315-D
Speaker Type3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB)31Hz - 20kHz
Coverage AreaH75゚ x V50゚
ComponentsLF15" Cone, 3" Voice Coil, Neodymium magnet
MF8" Cone, 1.5" Voice Coil, Ferrite magnet
HF2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover700Hz (FIR-X), 2.5kHz (Passive)
Sampling Frequency RateInternal96kHz and FIR Filter
A/D D/A Converters96kHz AD/DA
Maximum output level (1m; on axis)143dB SPL *1
SRCYes
Power ratingDynamic2000W (LF:1000W, MF/HF: 1000W) *2
Continuous1300W (LF: 920W, MF/HF: 380W)
I/O ConnectorsAnalog I/OAnalog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/ODante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
OthersUSB2.0 Host 5V 500mA for USB memory DATA storage/load
ACIEC AC inlet x1 (V-Lock)
Amplifier classClass-D
CoolingFan cooling, Variable speeds
Power consumption45W (Idle), 150W (1/8)
HandleAluminium die-cast, Side x2
RiggingM10 x16
DimensionsW550 mm (21.6")
H897 mm (35.3") (with rubber feet)
D520 mm (20.5")
Net weight41.6kg (91.7lbs)
OptionsCover: SPCVR-DZR315
OthersEnclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle-
Pole Socket-
