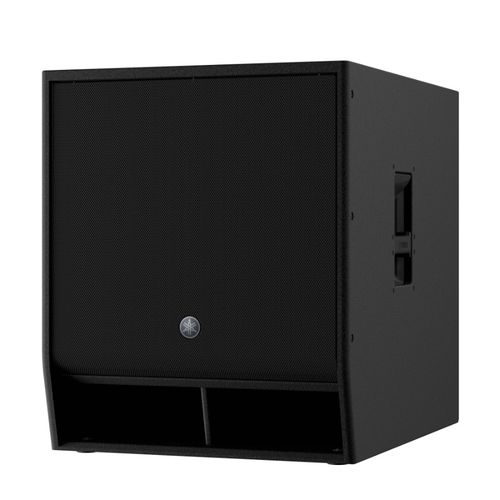

Yamaha DANTE 18" Powered Subwoofer - DXS18XLF-D

Yamaha DANTE 18" Powered Subwoofer - DXS18XLF-D

Part Number: DXS18XLF-D
Our Price: $1,879.99
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


Powered Subwoofer

Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Key Features
  • Powered 18” subwoofer with 4” Voice Coil
  • Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP for true high-resolution sound with super low latency
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)


General SpecificationsDXS18XLF-D
Speaker TypePowered Subwoofer, bass-reflex
Frequency range (-10dB)30Hz - 150Hz
Coverage Area-
ComponentsLF18" Cone, 4" Voice Coil, Ferrite magnet
Sampling Frequency RateInternal96kHz and FIR Filter
A/D D/A Converters96kHz AD/DA
Maximum output level (1m; on axis)136dB SPL *1
Power ratingDynamic1600W *2
I/O ConnectorsAnalog I/OAnalog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
Digital I/ODante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
OthersUSB2.0 Host 5V 500mA for USB memory DATA storage/load
ACIEC AC inlet x1 (V-Lock)
Amplifier classClass-D
CoolingFan cooling, Variable speeds
Power consumption40W (Idle), 180W (1/8)
HandleAluminium die-cast, Side x2
DimensionsW550 mm (21.7")
H657 mm (25.9") (with rubber feet)
D720 mm (28.3")
Net weight48.9kg (107.8lbs)
OptionsCover: SPCVR-DXS18X, Caster: SPW-1
OthersEnclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle-
Pole SocketΦ35 mm (depth 80mm), M20 Threaded (depth 25mm)
