Part Number: CXS18XLF
Our Price: $1,009.99
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

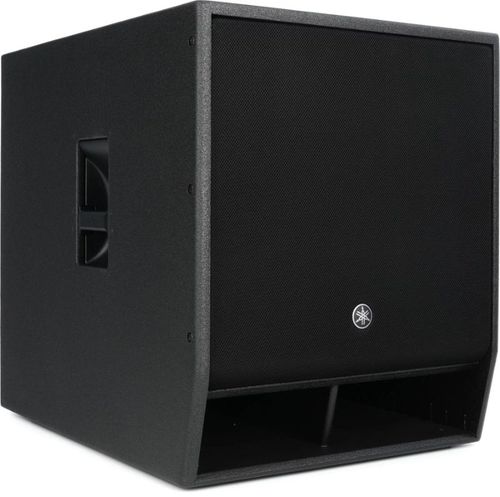

Yamaha CXS18XLF 1000W 18" Passive Subwoofer (Black)

The black Yamaha CXS18XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series powered loudspeakers. The subwoofer requires 1000W of power to drive the 18" woofer, providing a frequency range of 32 Hz to 150 Hz (-10 dB) with a maximum SPL of 133 dB.

Key Features
  • Passive reflex subwoofer: 18" with 4" voice coil
  • Ideal for low-frequency extension to all full-range loudspeakers
  • High-power 1000W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • 3 x speakON NL4MP (2 x parallel, 1 x output)
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating


LF Driver Size18" Subwoofer, 4" Voice Coil, Ferrite Magnet
Impedance8 ohms
Power Rating1000W Program
Inputs2 x SpeakON (parallel dual pole)
Total Power2000W Peak
Outputs1 x SpeakON (full range/cardioid rear)
Frequency Range32Hz-3kHz (passive), 32Hz-150Hz (with DSP processing)
Maximum Peak SPL133dB SPL
Mounting OptionsFloor
