Yamaha 15" Subwoofer; 4" voice coil (White), - yamaha-cxs15xlfw

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

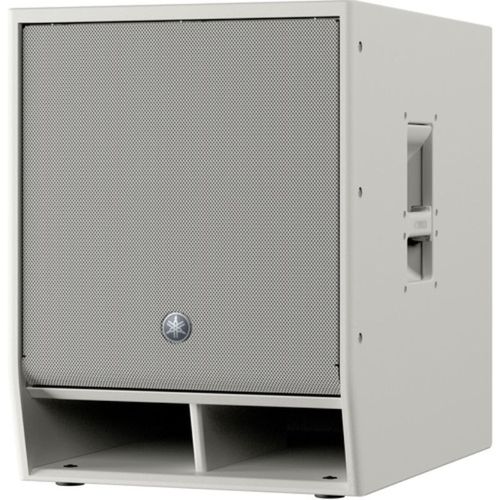

Yamaha CXS15XLFW 800W 15" Passive Subwoofer (White)

The white Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers. The subwoofer requires 800W of power to drive the 15" woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.

Key Features

For Live Stage, Theatre, DJ Setups
Designed for Low-Frequency Extension
Woofer: 15" with 4" Voice Coil
Max SPL: 130 dB
Frequency Range: 33 to 150 Hz (-10 dB)
3 x speakON (2 x Parallel, 1 x Out)

Specifications

Enclosure Type	Bass-Reflex Subwoofer
Total Power Capacity	400 W RMS, 800 W Program, 1600 W Peak
System Impedance	8 Ohms (Nominal)
LF Driver	1 x 15" / 381 mm Woofer
LF Voice Coil	4" / 101.6 mm
Magnet	Ferrite
Frequency Range	33 Hz to 150 Hz -10 dB
Maximum SPL	130 dB (Peak)
Speaker Sensitivity	98 dB
Audio I/O	2 x speakON NL4 Input/Thru, 1 x speakON NL4 Output
