Williams Sound IR T2 Infrared Transmitter PoE Wiring Kit - POE KT1

Using Williams Sound's passive POE injector kits (POE KT1 and POE KT2) allows the installer of an IR T2 to provide POE power and one of the following three options:

• 1 channel of balanced line level audio
• 1 or 2 channels of unbalanced line level audio
• RS-232 control and monitoring signal

CAT5 cable contains four twisted pairs of wires, two of which are used for POE, and the remaining wires can be used for the additonal features.

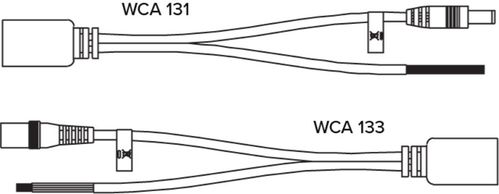

This kit should be used for applications using the power supply included with the IR T2 (TFP 057). The kit includes:

• (1) WCA 131
• (1) WCA 133
