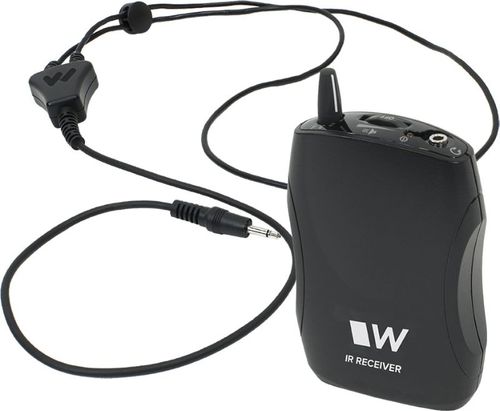

Williams AV Infrared Receiver - WIR RX22-4N-NKL

Williams AV Infrared Receiver - WIR RX22-4N-NKL

Part Number: WIR RX22-4N-NKL
Our Price: $288.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4-channel Infrared Receiver with Neckloop

The WIR RX22-4N is a four-channel selectable, infrared receiver compatible with transmitters operating on the 2.3/2.8/3.3/3.8 MHz bandwidth. Dual infrared detectors maximize sensitivity and operating range. Range of up to 30,000 square feet (2,800 square meters) in single-channel mode when used with a Williams Sound WIR TX925 or WIRTX90 infrared system. Comfortable, body-pack design features convenient channel selector and easy-to-use on/off volume control. The RX22-4N can be used with a neckloop (lanyard included), which is included with this bundle.

Specifications

Receiver Style:Body-Pack, dual-lens detector, lanyard
Size:4.1? L x 2.85? W x 1.2? H (104.1 mm x 72.4 mm x 30.4 mm)
Weight:4.5 oz (127 g) with batteries
Color and Material:Black
Lanyard:3 ft (0.91 m), allows receiver to be worn around the neck
Operating Temperature:-10° C to +50° C
Battery Type:2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life:Alkaline: 60 hours, NiMH: 30 hours/charge
Battery Drain:25 mA, nominal
Charging Contacts:For use only with CHG 3512
Carrier Frequency:Channel 1: 2.3 MHz, Channel 2: 2.8 MHz
Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis:50 uS
FM Deviation:±50 kHz
Signal-to-Noise Ratio:60 dB min.
Squelch:Receiver squelches (mutes) at 28 dB S/N ratio
Frequency Response:25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion:Less than 1%, electrical response
Controls:ON/OFF/VOLUME: combination thumbwheel knob
Channel Selector: four-position rotary switch
Indicators:Red LED “ON” indicator, flashes to indicate Low battery
Audio Output Jacks:3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power:15 mW max at 32 ?
Acoustic Output:125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Sensitivity:Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Approvals:CE, FCC, RoHS, WEEE
Warranty:5 years on receiver, 90 days on accessories
Compatible Headphones/Earphones:Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
