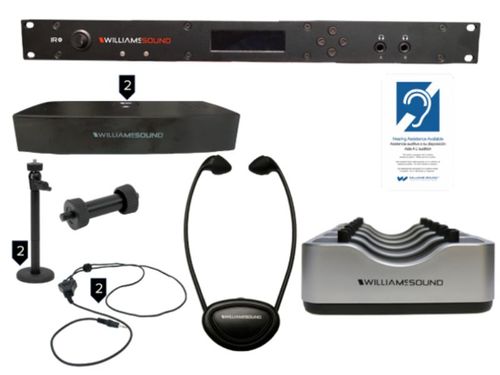

Williams AV IR+ system - IR SY12 D

Williams AV IR+ system - IR SY12 D

Part Number: IR SY12 D
Our Price: $5,960.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

IR+ Secure with Dante

IR+ system packed with all the tools needed for a secure, functioning system.

Specifications

IR M1
Dimensions:19” (W) x 1.75” (H) x 8.2” (D)
(48.3 cm x 4.5 cm x 20.8 cm)
Weight:5.2lb. (2.4 kg)
Color:Black
Rack Mount:Single Rack Unit
Power Supply:International Desktop Supply
Input: 36 W, 110-240 VAC 50-60 Hz
Output: +48VDC, 0.75A center-positive
Power Switch:Rocker switch with LED
Signal to Noise Ratio:67 dB (typical)
Modulation:FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency:Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response:40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion:Less than 2%, electrical response
Audio Processor Functions:DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off:Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED:Dual IR LED for receiver testing, monitoring, and audio signal testing.
Audio Input:(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante:Optional
Internal Test Tone:400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration:Available through embedded website
Headphone Output:(2) 1/4? headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack:Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements:0-50ēC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:2 years on Modulator, 90 days on accessories
IR E4
Dimensions:7.5” (W) x 1.4” (H) x 3.6” (D)
(19.1 cm x 3.6 cm x 9.1 cm)
Weight:0.8 lb (362 g)
Color:Black
Power:48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area:Up to 18,000 square feet in single channel mode
Connectivity:+48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements:0-50ēC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:2 years on Emitter; 90 days on accessories
CHG 520
Dimensions:12?L x 6.25?W x 1.5?H (30.48 cm x 15.875 cm x 3.81 cm)
Weight:13.6 lbs
Color:Black metal and plastic
Power Supply Input:120 VAC
Power Supply:100-240V / 12VDC TFP 043
Unit Capacity:5 Units
Indicators:Individual Charging Indicators: Red LEDs
Warranty:1 year (90 day warranty on cables and power supply)
Approvals:WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI
IR RX20
Weight:1.6 oz
Material and Color:IR Transparent polycarbonate, black
Battery Type:LiPo
Battery Life:8 hours
Battery Charger:CHG 520
Operating Temp:32-122° F (0-50° C)
Range:Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
Operating Frequency:2.3 MHz or 2.8 MHz or stereo
Frequency Response:100 Hz to 12 kHz, ą 3 dB
Signal to Noise Ratio:60 dB at 10 m
Controls:Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
Acoustic Output:120 dB MAX SSPL90 with 2 cc coupler
Compatibility:Compatible with 2.3 MHz and 2.8 MHz IR transmitters
Headphone Jack:3.5mm stereo
Ear pads:EAR 089
Approvals:CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
Warranty:5 years (90 days on battery)
