Williams AV IR+ system - IR ME1 D

Williams AV IR+ system - IR ME1 D

Part Number: IR ME1 D
Our Price: $3,780.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

IR+ Combo with Dante

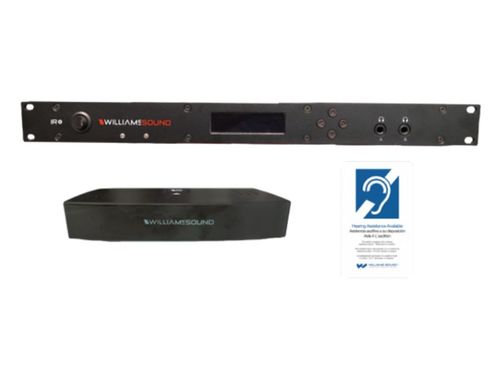

IR+ system with Dante features with emitter and ADA sign

Specifications

IR M1
Dimensions: 19” (W) x 1.75” (H) x 8.2” (D)
(48.3 cm x 4.5 cm x 20.8 cm)
Weight: 5.2lb. (2.4 kg)
Color: Black
Rack Mount: Single Rack Unit
Power Supply: International Desktop Supply
Input: 36 W, 110-240 VAC 50-60 Hz
Output: +48VDC, 0.75A center-positive
Power Switch: Rocker switch with LED
Signal to Noise Ratio: 67 dB (typical)
Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion: Less than 2%, electrical response
Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante: Optional
Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration: Available through embedded website
Headphone Output: (2) 1/4? headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements: 0-50ēC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty: 2 years on Modulator, 90 days on accessories
IR E4
Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D)
(19.1 cm x 3.6 cm x 9.1 cm)
Weight: 0.8 lb (362 g)
Color: Black
Power: 48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area: Up to 18,000 square feet in single channel mode
Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements: 0-50ēC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty: 2 years on Emitter; 90 days on accessories
