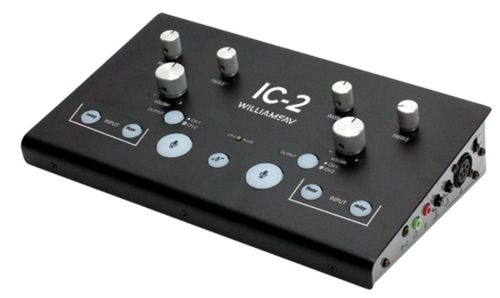

Williams AV Interpreter Control Console - IC-2

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

[IC-2] Interpreter Control Console

The Williams Sound IC-2 is an audio control center for simultaneous interpretation of one or more languages. As a stand-alone unit, it allows one or two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to one of two language groups. Ideal for presentation-style conferences of up to 14 languages, where a floor and a single relay language are used. Can be used with Williams Sound FM, infrared and Digi-Wave™ transmitters for portable or fixed installations. Designed to meet international standards for portable interpretation consoles.

Key Features

CAT 5 audio offers simplified cabling and easy cascading to support additional interpreters.
Built-in distribution amplifier and mini mixer reduce the need for external equipment and greatly simplify setup
Floor language feed-through
Interlocking microphone and relay output functions
Enhanced flexibility, providing each interpreter with multiple microphone and headset options

Specifications

Dimensions/Weight/Color	10? (25.4cm) x 6.35? (6.2cm) x 2.45? (6.2cm) / 3.4 lbs (1.5 kg) / Black and Silver
Power	External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A
INPUTS / OUTPUTS
Floor In	3-pin XLR female jack, balanced (or unbalanced) input with 24k ? differential input impedance, max balanced input is +19dBu
IC-2 Bus In / Out	CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2
XLR Microphone Inputs	3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB, 2.4k ? balanced input impedance, maximum balanced input is +19 dBu
3.5mm Microphone Inputs	Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7k ?
3.5mm TRRS Headphone Output	3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 ? stereo headset.
3.5mm Headphone Output	3.5mm TRS phone jack, mono or stereo headphone, 8 ? minimum. 190mW max power into 32 ? stereo headset.
Norm Out, Relay Out	3-pin XLR male jack, balanced output. Max output is +19dBu into 600 ? balanced load impedance.
CONTROLS
Volume	Left and Right rotary, controls headphone volume
Bass and Treble Tone	Left and right rotary with center detent, controls headphone bass and treble tone levels.
Mute	Push button, backlit red, mutes left and right mics while pressed.
Mic On	Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can only be turned on if the other is off.
Floor Input, Relay Input	Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other.
Relay Output	Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out.
Gain Adjust	Rotary gain pots control level of microphone and Floor audio.
Phantom Power	Slide switch enables 12VDC Simplex power to XLR microphone.
Norm Feedthrough	Slide switch enables Floor feedthrough to Norm Out XLR jack.
Relay Feedthrough	Slide switch enables Floor feedthrough to Relay Out XLR jack.
Ground Lift	Slide switch disconnects Chassis and Audio Grounds internal to the console.
INDICATOR
Peak Level Indicator	Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking.
Relay Output in Use Indicator	Yellow LED on front panel indicates when Relay Output is in use.
AUDIO OUTPUT
Frequency Response	45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble
Distortion at 1kHz	[lt]0.5% THD @ full power
Signal to Noise Ratio	[gt]82dB @ 1kHz
Crosstalk Attenuation	[gt]63dB @ 1kHz
Tone Controls	Bass: +12dB Boost or -12dB Cut @ 100Hz Treble: +12dB Boost or -12dB Cut @ 10kHz
Approvals and Declarations	CE, FCC, Industry Canada, RoHS, C-Tick, CB
Warranty	5 years, parts and labor (90 days on accessories)
