Williams AV FM ADA Compliance Kit - FM ADA KIT 37

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

FM ADA Compliance Kit - Alkaline Battery

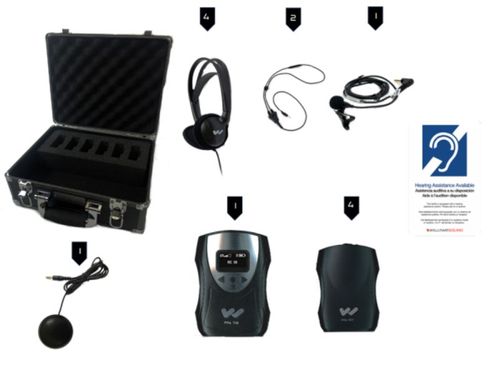

The FM ADA KIT 37 is an FM ADA Compliance Kit that contains everything you need to accommodate individuals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks. This version of the kit contains alkaline batteries. This portable, easy-to-use FM system operates at 72-76 MHz on one of 17 selectable channels. This single kit satisfies ADA requirements for multiple-room facilities. This kit comes in a carry case with A T46 FM transmitter, 4 FM R37 receivers with alkaline batteries, headphones, neckloops, and a microphone.

Key Features

Simple set-up and operation
T46 transmitter
150’ operating range
100 hours receiver battery life
Made in USA

Specifications

HED 027

Style	Heavy-duty, folding, mono headphones
Plug	3.5mm mono
Cord	39"
Driver Size	40 mm
Nominal Impedance	16?
Freq. Response	20 - 20kHz
Weight	102g
Max Power Input	100 mW
Sensitivity	96 dB @ 1kHz
Replacement Pads	EAR 035 (one pair)

MIC 090

Element	Electret-Condenser
Pick-Up Pattern	Omni-directional
Phantom Powered	No
Impedance	1.5 k?
Frequency Response	20 Hz – 18 kHz
Dynamic Range	79 dB
Sensitivity	-56 ± 3 dB
Signal-to-Noise Ratio	63 dB
Plug	3.5 mm, right-angle
Cord Length	39”
Color	Black
Weight	0.05 lbs
Replacement Windscreen	WND 006
Replacement Clip	CLP 090
Approvals	RoHS
Warranty	90 days

NKL 001

Color:	Black
Weight:	1.5 oz
Length:	18.5” cord
Connector:	NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
Impedance:	8-16 Ohms
Input Power:	500 mW max
Magnetic Field Strength:	25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85?W input produces 0.1 A/m (IEC Standard)
Approvals:	RoHS, WEEE
Warranty:	One Year

PPA R37

Dimensions:	4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
Weight:	4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:	Black
Battery Type:	(2) AA Alkaline or 2 x AA NiMH
Battery Life:	Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption:	52mA nominal
Temperature Range:	– 0 to 50C
Channels	17, accessed via seek button in battery compartment
Operating Freq.:	72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
Intermediate Freq.:	75 kHz
FM Deviation:	75 kHz
De-Emphasis:	75 µS
LED Indicator:	Power: Green; Low Battery: Flashes Green
AFC Range:	± 120 kHz
Sensitivity:	2 µV at 12 dB Sinad with squelch defeated
Input Overload:	100 mV
Frequency Response:	200 – 15 kHz
Modulation:	FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:	65 dB min @ 100 uV
Receive Antenna:	Integral with earphone/headphone cord
Audio Output:	35 mW max, peak into 16 ohms
Output Connector:	3.5 mm stereo/mono phone jack
Earphone:	Earbud-type with foam cushion, 3.5 mm plug, 32 ?
Auto Shut-off	Enters sleep mode after approx 6 mins of no RF signal
Approvals:	FCC, Industry Canada, RoHS, WEEE
Warranty:	Lifetime PLUS Limited Warranty, 90 Days on most accessories.

PPA T46

Dimensions:	4.1” L x 2.8” W x 1.1” D (104 mm x 71 mm x 28 mm)
Weight:	2.6 oz (74 g), no batteries
Color:	Black/Silver
Enclosure Material:	Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
Battery Type options:	Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14–16 hours, uses CHG 3502 or CHG 3512 Charger
Operating Frequencies:	Selectable, 17 channels, 72.1 – 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
Stability:	± .005%, frequency synthesized, crystal reference, PLL
Modulation:	Wide-band FM, 75 kHz peak, 75 µS pre-emphasis
RF Output:	80 mV/m at 3 m (max. allowed by FCC rules)
Range:	150 ft/45 m
Frequency Response:	180 Hz to 13 kHz, ± 3 dB at 1% max. THD
Signal-to-Noise Ratio:	65 dB (typical) transmitted
Transmit Antenna:	Integral with microphone cord
Microphone:	Electret type, 3.5 mm mono plug
External Display:	OLED for status and menu information. Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode. Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
External Controls:	Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. “Up”, “Down” and “Menu” buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
External Indicators:	Power LED - Green, flashes when battery is low
Mic Input:	3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
Aux Input:	2.5 mm stereo jack, adjustable gain with 60 dB range
Audio Compression:	1:1 (off) or 2:1 (on) selectable in menu
Compatible Receivers:	PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600,
Approvals/Directives:	FCC, Industry Canada, RoHS, WEEE
Warranty:	Lifetime PLUS Limited Warranty, 90 Days on most accessories.

MIC 149

Type	Electret
Size	60mm diameter x 16mm height
Color	Black
Plug	3.5mm mono
Cord	39” (99 cm)
Output Impedance	1500 ?
Polar Pattern	Omnidirectional
Bias Power Requirement	1.0-10VDC
Sensitivity	-40 dB ± 3 dB
Warranty	90 days
