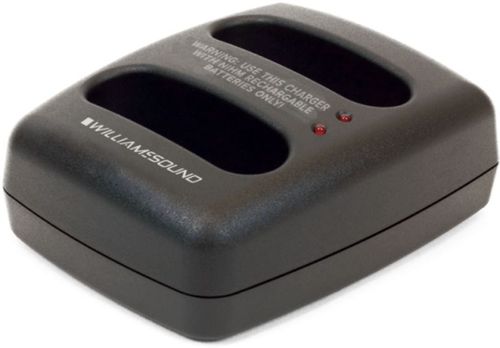

Williams AV Two-bay, drop-in charger - CHG 3502

Williams AV Two-bay, drop-in charger - CHG 3502

Part Number: CHG 3502
Our Price: $77.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Body-pack charger, 2-bay

Dual drop-in charger for body-pack style transmitters and receivers.Includes Power Supply. For use with: PLR BP1 Loop receiver, PPA R37 FM receiver, PPA R37-8 FM receiver, PPA R38 FM receiver, PPA T46 FM transmitter, WIR RX22-4 Infrared receiver

Specifications

Dimensions:4-7/8?L x 3-7/8?”W x 2?H (12.4 cm L x 9.8 cm W x 5.1 cm)
Shipping Weight:1.1 lbs (0.5 kg)
Enclosure:Black, ABS plastic
Charger Power:Input: 6 VDC, 300mA, Center Positive.
Output: 100mA per bay.
Power Supply:Williams Sound TFP 041 (US)
Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A
Output: 6 VDC, 1.5 A.
Charging Time:16 hours nominal *
Unit Capacity:2?Units
Indicators:2 Red LEDs – one for each bay. LEDs are lit when charging.
Approvals:CE, FCC, RoHS
