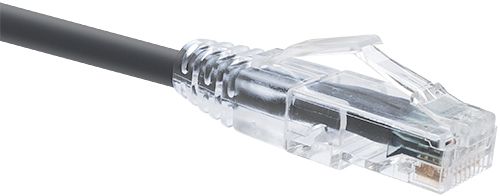

Unirise 50' Black Cat 5e Cable - 10334

Unirise 50' Black Cat 5e Cable - 10334

Part Number: 10334
Our Price: $28.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Unirise 50' Black Cat 5e Cable - 10334

The Cat6 cable that provides you a labor cost savings, actually reducing installation time. Our ClearFit line of Category 6 cables are low profile, and offer a unique snagless and easy to release design that makes crowded patch panel installations a snap. Category 6 cable, commonly referred to as Cat6, is a standardized cable for Gigabit Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards. When compared to Cat5e, Cat6 features more stringent specifications for crosstalk and system noise. While the Cat6 TIA cable standard provides performance of up to 250 MHz, our ClearFit is tested to exceed 550MHz and easily handles bandwidth intensive applications such as 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T/1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet). Plugs are staggered and plated with 50 microns of gold per contact. In addition, they are TAA compliant.

ClearFit is tested and guaranteed for a lifetime.

The Difference is Clear
  • ClearFit patch cables available in Cat 6 and Cat 5e
  • Low profile connector for easy fit in panels & switches
  • Unique easy-release, snagless retainer clip design
  • Ultra-flexible NoKink cable for smooth installation
  • TAA/BAA compliant
  • Individually tested, packed and guaranteed a lifetime
  • 11 vibrant color options

Specifications

Length50'
ColorBlack
Conductor ConstructionBare Stranded Copper
Conductor Size24AWG x 4 Pair
InsulationPE
SeparatorPE Cross
Jacket70P PVC
Outer Diameter6.0 +/-0.2mm
Dielectric StrengthAC-500V/1 min no breakdown
DC Resistance Unbalance5% max
Pair to Ground Capacitance Unbalance330pF/100m
Nominal Velocity of Propagation (NVP)68+/-2%
Mean Characteristic Impedance100+/-15 ohm @ 4-1000MHz
100+/-22 ohm @ 100-250MHz
Nominal Velocity of Propagation (NVP)68+/-2%
Mean Characteristic Impedance100+/-15 ohm @ 4-1000MHz
100+/-22 ohm @ 100-250MHz
Propegation Delay Skew>/= 45ns/100m max
Conductor Resistance Working Temperature<93.8O/km/20 degrees C max
Working Temperature-20 degrees Celcius ~ 75 degrees Celcius
Propegation Delay>/= 537.0ns/100m @ 100MHz
