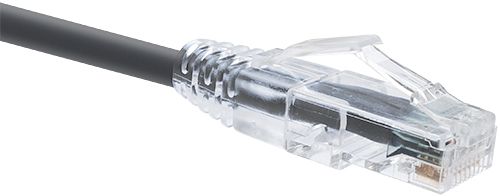

Unirise 25' Black Cat 6 Cable - 10066

Unirise 25' Black Cat 6 Cable - 10066

Part Number: 10066
Our Price: $22.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Unirise 25' Black Cat 6 Cable - 10066

Unirise's ClearFit line of Category 5e cables are low profile, and offer a unique snagless and easy to release design that makes crowded patch panel installations a snap. ClearFit is tested to exceed 350MHz and easily handles bandwidth intensive applications. Plugs are staggered and plated with 50 microns of gold per contact. In addition, they are BAA compliant and individually bagged, tested and guaranteed for a lifetime.

The Difference is Clear
  • ClearFit patch cables available in Cat 6 and Cat 5e
  • Low profile connector for easy fit in panels & switches
  • Unique easy-release, snagless retainer clip design
  • Ultra-flexible NoKink cable for smooth installation
  • TAA/BAA compliant
  • Individually tested, packed and guaranteed a lifetime
  • 11 vibrant color options

Specifications

Length25'
ColorBlack
Conductor ConstructionBare Stranded Copper
Conductor Size24AWG x 4 Pair
InsulationPE
SeparatorPE Cross
Jacket70P PVC
Outer Diameter6.0 +/-0.2mm
Dielectric StrengthAC-500V/1 min no breakdown
DC Resistance Unbalance5% max
Pair to Ground Capacitance Unbalance330pF/100m
Nominal Velocity of Propagation (NVP)68+/-2%
Mean Characteristic Impedance100+/-15 ohm @ 4-1000MHz
100+/-22 ohm @ 100-250MHz
Nominal Velocity of Propagation (NVP)68+/-2%
Mean Characteristic Impedance100+/-15 ohm @ 4-1000MHz
100+/-22 ohm @ 100-250MHz
Propegation Delay Skew>/= 45ns/100m max
Conductor Resistance Working Temperature<93.8O/km/20 degrees C max
Working Temperature-20 degrees Celcius ~ 75 degrees Celcius
Propegation Delay>/= 537.0ns/100m @ 100MHz
