TRUSST 290mm (12in) Truss, 2-Way, 90° Corner - CT290-490C

TRUSST 290mm (12in) Truss, 2-Way, 90° Corner - CT290-490C

Part Number: CT290-490C
Our Price: $328.89
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

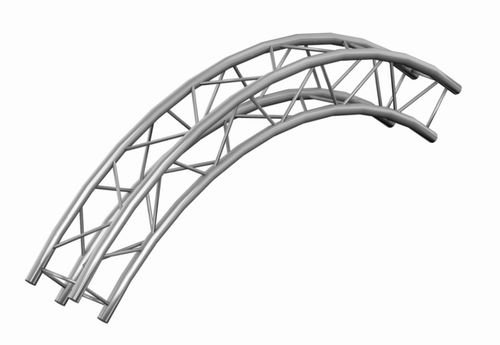

3.0 m Arc Section

TRUSST® is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.

The CT290-430CIR-90 arc truss with an outside diameter of 3.0 meters (9.84ft) and a 90° arc is compatible with many TRUSST® accessories and ideal for a multitude of applications and designs when used in combination with TRUSST® Sticks, Corners, Base Plates, Accessories and Clamps.

Key Features
  • Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
  • Carefully crafted by SLV-certified welders
  • Compatible with many TRUSST® accessories to create an astonishing and custom presentation
  • Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
  • Includes connecting hardware

Specifications

  • Outside diameter: 9.84 ft (3 m)
  • Inside diameter: 8.20 ft (2.5 m)
  • Arc: 90°
  • Outer diameter tube: 2 in (50 mm)
  • Diagonal bracing: 0.75 in (20 mm)
  • Wall thickness: 0.08 in (2 mm)
  • Weight: 28.6 lb (13 kg)
  • Approvals: SLV
