Tripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WP
Tripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WPTripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WPTripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WP

Tripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WP

Part Number: B126-1A0-WP
Our Price: $135.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

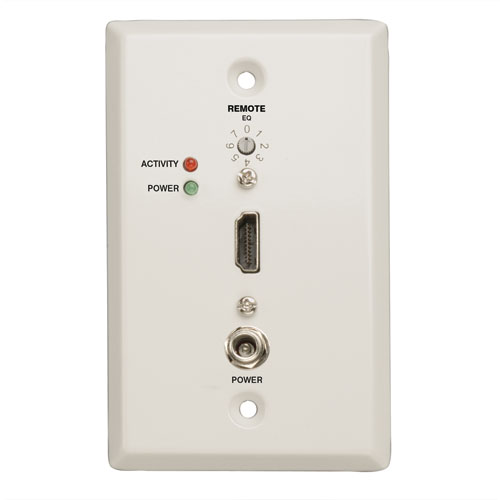

Tripp Lite HDMI Over Cat5 Active Extender Remote Wallplate (White) - B126-1A0-WP

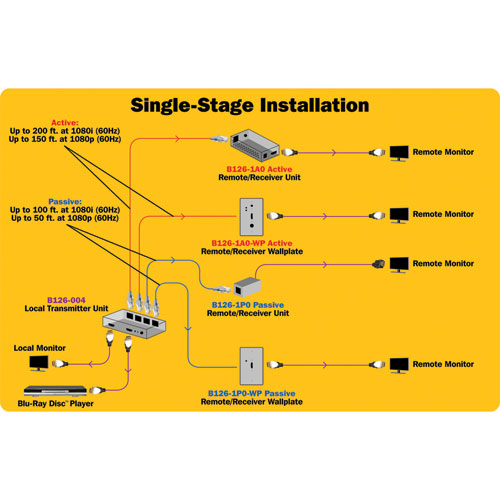

The B126-1A0-WP is an active extender remote wallplate for the B126-002 (2-Port) and B126-004 (4-Port) HDMI Over Cat5 Extender/Splitter local units. When using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N022-01K-GY, N202-Series, N222-01K-GY), the B126-1A0-WP can extend a 1080i (60Hz) signal up to 200 ft.; or, a 1080p (60Hz) signal up to 150 ft.. An Equalization setting is built-in to the unit, allowing for adjustment of the video image. When used with a B126-002 or B126-004, both stereo audio and 7.1 channel surround sound audio are supported, as well as HDCP protected content. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.

Key Features
  • Active extender remote wallplate for the B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units
  • Extends a 1080i (60Hz) signal up to 200 ft.; or, a 1080p (60Hz) signal up to 150 ft. when using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N022-01K-GY, N202-Series, N222-01K-GY)
  • Features a built-in Equalization setting, allowing for adjustment of the video image
  • When used with a B126-002 or B126-004, compatible with both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content
  • No software or drivers required
  • Compatible with all operating systems
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1 year limited warranty

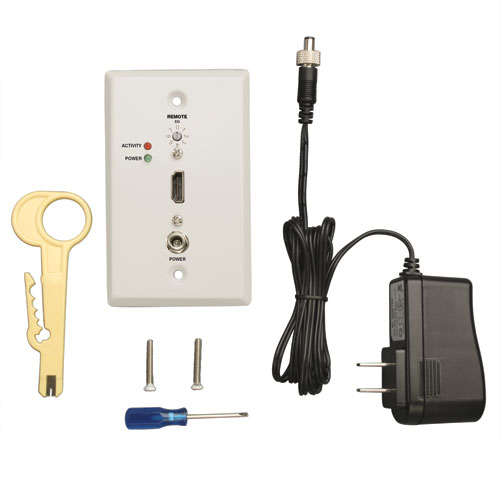

Package Includes
  • B126-1A0-WP HDMI Over Cat5 Active Extender Remote Wallplate
  • Screwdriver for adjustment of Equalization
  • 110 punchdown tool
  • Wallplate mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

Specifications

PHYSICAL
Unit Dimensions (HWD/cm)
4.5 x 2.75 x 1

Mounting accessories included
Yes

Color
White

CONNECTIONS
Connector A
HDMI (FEMALE)

Connector B
110 (FEMALE)

WARRANTY
Product Warranty Period (U.S., Canada & Puerto Rico)
1-year limited warranty
