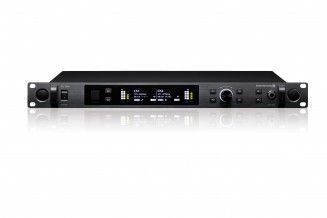

TG 1000 Dual Receiver Region (B) United States by beyerdynamic

TG 1000 Dual Receiver Region (B) United States by beyerdynamic

Part Number: TG-1000-DUAL-RX
Our Price: $3,006.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

TG 1000 Dual Receiver Region (B) United States by beyerdynamic

Digital UHF True Diversity Receiver, 319 MHz bandwidth

TG 1000 is beyerdynamic´s first 24-bit digital wireless system, which covers an impressive 319 MHz of the UHF bandwidth (470–789 MHz). With these two features alone, TG 1000 is a hugely flexible system which can be used in a wide variety of venues worldwide, competently and reliably. Combine this with a wealth of user-friendly features designed to enhance your performance and TG 1000 becomes your go-to wireless system regardless of application.

FEATURES TG 1000 DUAL RECEIVER
  • Digital two-channel UHF true diversity receiver
  • 319 MHz bandwidth
  • 2,1 ms total latency
  • Suitable for 19" rack mounting, 1 U
  • BNC In/Outputs
  • XLR & jack outputs
  • TriplePlay Codec for low latency (1.2 ms), high error resilience and finest audio quality
  • Looping through the antenna signals of up to 8 receivers
  • Status display (battery, transmitter type, microphone capsule)
  • Browser control and monitoring via integrated web server
  • Encrypted data transmission
VERSIONS Region A 470 - 789 MHz
Region B 470 - 698 MHz (without 608 - 614 MHz)
Region C 690 - 720 MHz
Region D 470 - 628 MHz & 710 - 716 MHz
Region E 470 - 714 MHz

Specifications

Operating principleDigital UHF true diversity receiver
Frequency response20 – 20,000 Hz
Dynamic range116 dB (128 dB with -12 dB level decrease in the beltpack transmitter)
Output levelmax. + 18 dBu balanced (XLR and jack output), 0 to 30dB digital gain, + 12dB analogue boost
Headphone outputSwitchable with volume control
Latency2.1 ms (overall latency from transmitter to receiver)
Encryption & Audio CODECSwitchable, proprietary encryption scheme based upon a 16 bit pattern; “Triple-Play” CODEC with low latency and high error resilience
DisplayOLED
Mains connection100 V – 240 V AC
Power consumption12 W (typ.)
Weight3200 g
Dimensions420x242x43 mm
