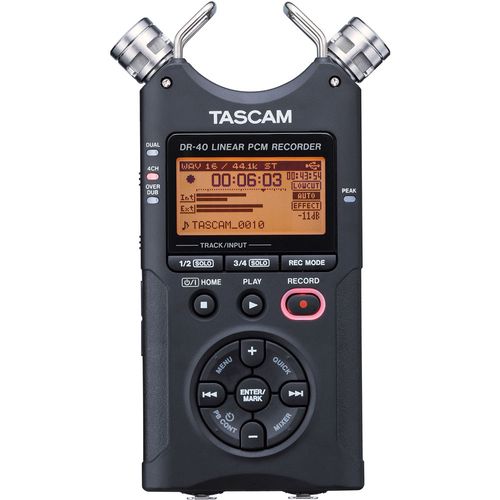

Tascam Handheld 4-Track Recorder - DR-40

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
The adjustable mics, four-track recording and extended battery life of the Tascam DR-40 give you the flexibility you need to record tracks anywhere.
The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you tailor your recording to the sound of the room. A pair of great-sounding Tascam microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or ¼” line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.
Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with Tascam’s simple-to-use interface. No other recorder makes home or live recording as simple as the Tascam DR-40.
Specifications
| Recording media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
| File system | FAT16/32 |
| File format | WAV,BWF,MP3 |
| WAV / BWF | 44.1/48/96kHz, 16/24bit |
| MP3 | |
| Sampling frequency | 44.1kHz/48kHz |
| Bit-rate for recording | 32k/64k/96k/128k/192k/256k/320kbps |
| Playback bit rate | 32 - 320kbps, VBR, ID3 tag Ver. 2.4 |
| Number of channels | 4-channel (2 Stereo) |
| Playback speed control (VSA) | 0.5 - 1.5 times (in 0.1 increments) * 44.1/48kHz only |
| Built-in microphone | Unidirectional, stereo (Possible to switch between A-B/X-Y positions) |
| EXT MIC/LINE IN | |
| Nominal input level | -19dBV(MIC) / +4dBu (LINE) |
| Input impedance | 2.2k ohms(MIC) / 10k ohms(LINE) |
| Nominal input level | -19dBV(MIC) / +4dBu (LINE) |
| Input impedance | 2.2k ohms(MIC) / 10k ohms(LINE) |
| PHONES/LINE OUT | |
| Connector | 1/8""(3.5mm)stereo mini jack, Unbalanced |
| LINE OUT | |
| Maximum input level | -3dBV (MIC) / +20dBu (LINE) |
| Standard output level | -14dBV(10k ohms load) |
| Maximum output level | +2dBV(10k ohms load) |
| PHONES | |
| Maximum output level | 20mW+20mW(32ohms load) |
| Built-in speakers | 0.3W, Mono |
| Low-cut filter | 40Hz/80Hz/120Hz |
| USB | |
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED |
| REMOTE | 2.5mm TRS jack |
| Effector | 6 presets (HALL1/2, ROOM, STUDIO, PLATE1/2) |
| Chromatic tuner | C1 - B6, A4 = 435Hz - 445Hz (in 1Hz increments) |
| Tripod attachment screw-hole | 1/4 inch, Tripod attachment screw-hole |
| Power | 2 AA batteries, USB bus power, AC100 - 240V (Optional AC adapter) |
| Power consumption | 2.5W (Max) |
| With alkaline batteries (EVOLTA) | Approx. 20.5 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) |
| With Ni-MH batteries (eneloop) | Approx. 17 hours (2ch WAV, 44.1kHz, 16bit, using built-in microphone) |
| Dimensions | 70(W)x 155(H)x 35(D)mm |
| Weight | 213g (Without battery) |
| Accessories | 2GB microSD card, USB connection cable, 2 AA batteries for confirming operation, Owner's Manual, Warranty card |
